Part Number:
22B-B024N104Weight:
3.6kgDimensions:
12.7 cm x 20.3 cm x 15.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

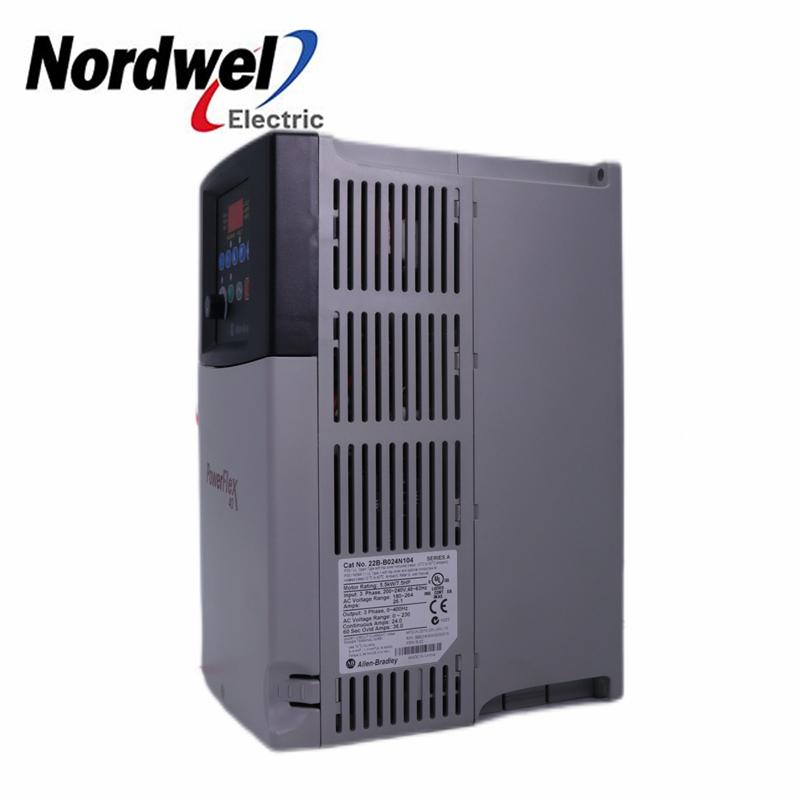

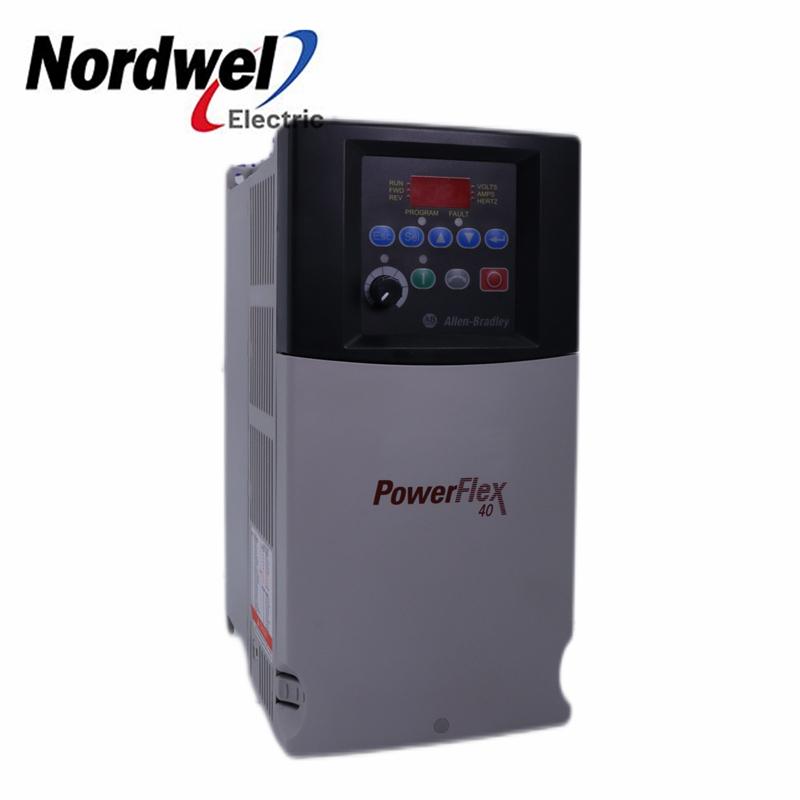

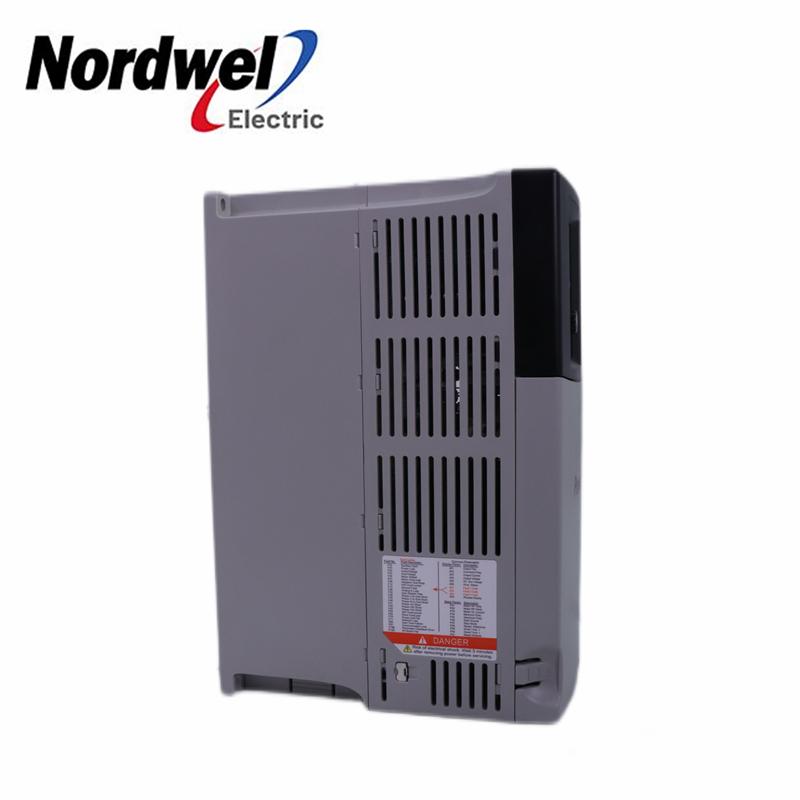

22B-B024N104 AC Drive - 7.5 HP
Technical Description of 22B-B024N104
The 22B-B024N104 drive is an industrial drive from the PowerFlex 40 series. It is rated for 240 Volts
AC 3-phase voltage at a frequency level of 50 to 60 Hertz. The 22B-B024N104 drive has no filter. It has an output
current rating of 24 Amps and a Horsepower output rating of 7.5 Horsepower. The 22B-B024N104 drive is designed
for panel mounting and its enclosure has an IP 20 environmental protection rating.
Technical Specifications for 22B-B024N104
Manufacturer / Automation
Drive Type PowerFlex 40 Adjustable Frequency AC Drive
Part Number/Catalog No. 22B-B024N104
Part Number 22B-B024N104
Product Line Powerflex 40
Input Voltage: 180-264 VAC
Voltage 240AC Volts
Input phase: 3-Phase
Enclosure Panel Mount - IP20, NEMA/UL Type Open
Input current: 26.1 Amperes
HP 7.5 Horsepower
Input kVA: 11.8 kVA
Amperage 24.0 A
Output Voltage: 0-240VAC
Phase 3 Phase
Output Phase: 3-Phase
Filter No CE Compliant Filter
Output Power 5.5 kW (7.5 HP)
Communication RS-485
Output current 24.0 Amperes
Input Type Keypad
Output phase 3-Phase
Braking Standard
EMC Filter none installed
Frame C
Interface Module Fixed keypad
Communication ports: RS485
Control Method: Volts per Hertz, Sensorless Vector Control
Process PID: Supported
