Part Number:
2711-K5A5XWeight:
1.2kgDimensions:
27.9 cm x 17.8 cm x 10.2 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

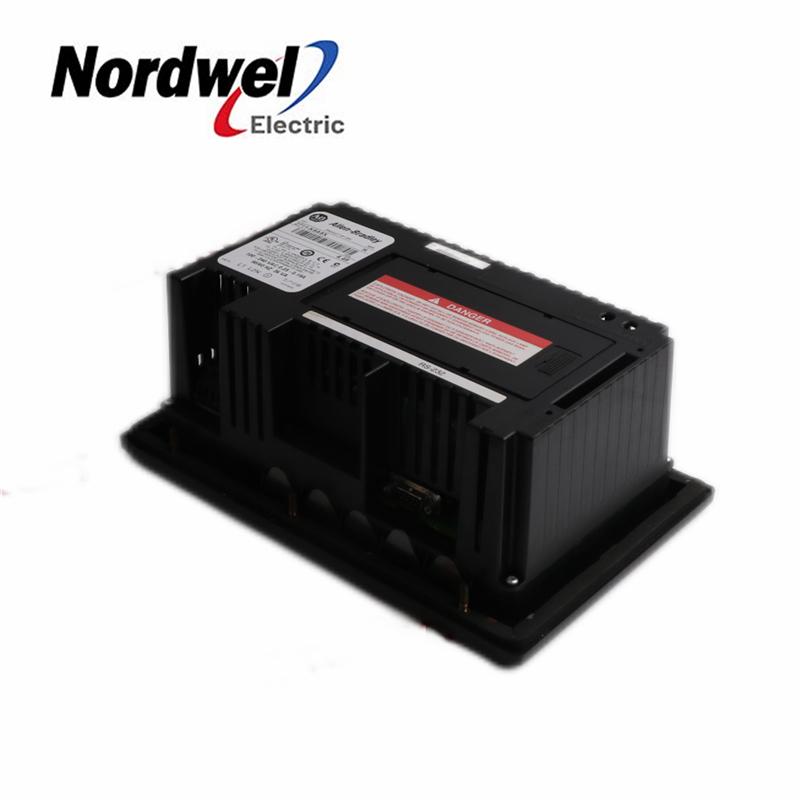

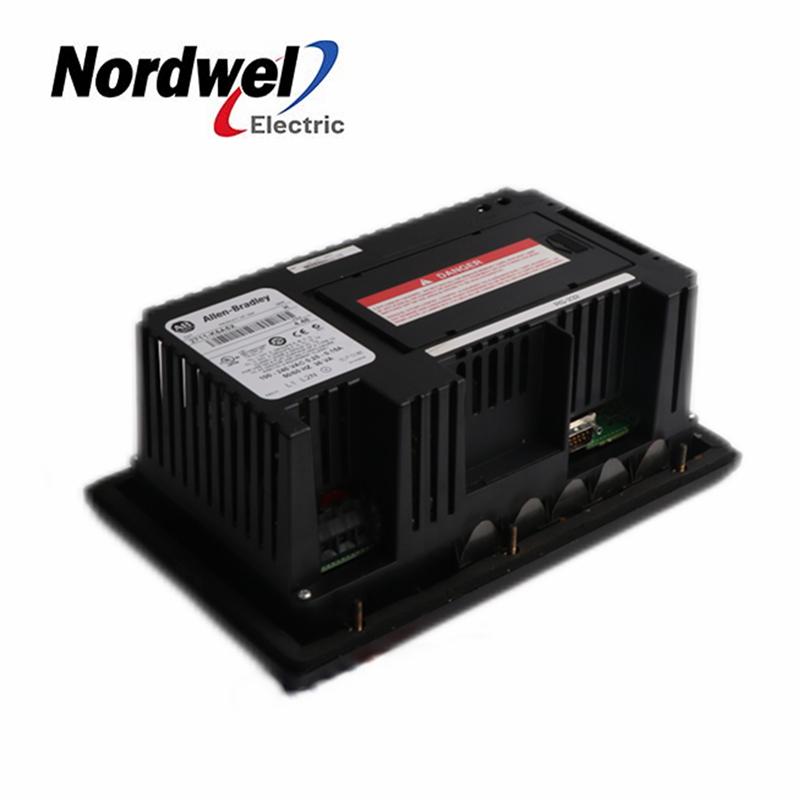

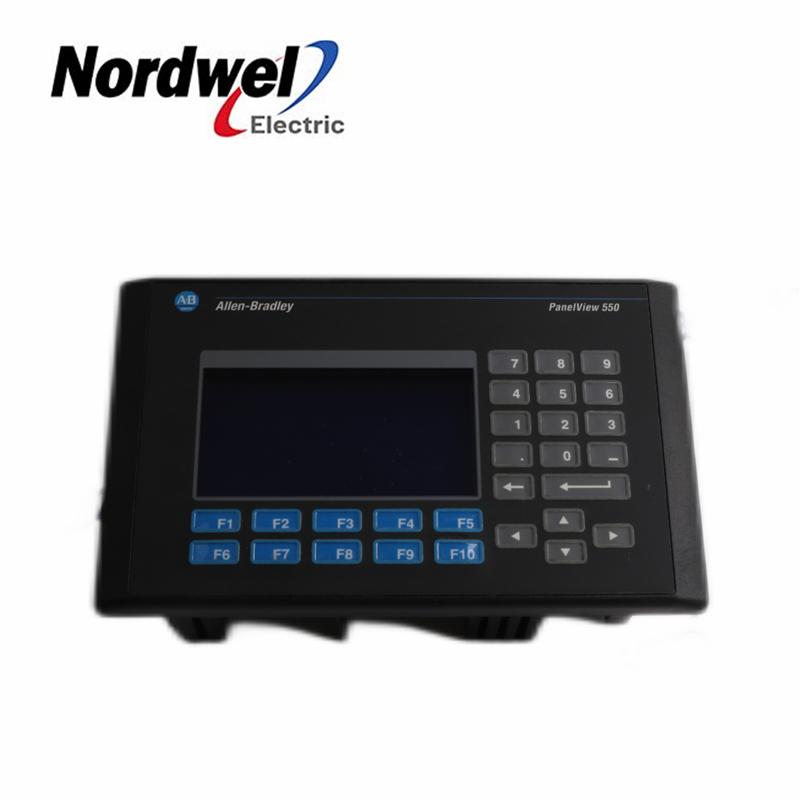

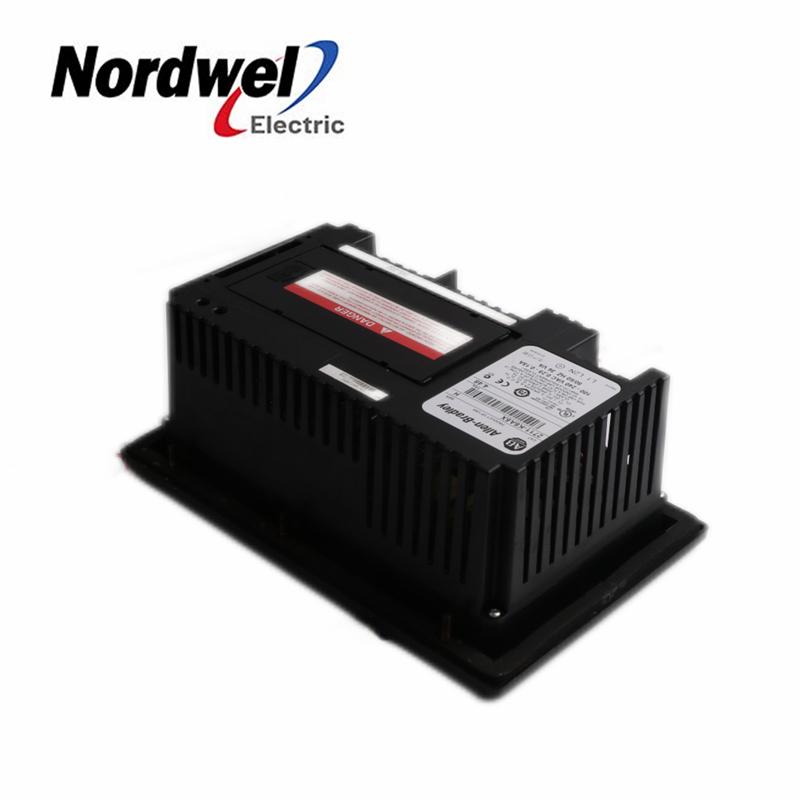

2711-K5A5X PanelView 550 Monochrome/Keypad/RS-232-(DH-485), AC
Technical Specifications for 2711-K5A5
Backlight 100,000 hr LED backlight life
Brand
Manufacturer: Automation
Product Family: PanelView Standard Operator Terminals
Product Type: PanelView 550 Standard Operator Terminals
Operator Input: Keypad
Display Type: Monochrome transflective LCD with LED backlight
Display Area: 120 x 60 mm (4.75 x 2.38 in.)
Resolution: 256 x 128
Keypad Assembly: 10 function keys (F1…F10)
Application memory: 170 KB application runtime; 240 KB nonvolatile memory
(application objects plus text and bitmaps)
Communication ports: RS232 (DH485)
Input Voltage range: 85…264V AC
Input Frequency: 47…63 Hz
Enclosure: NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
Status Indicators: COMM: Green Fault: Red
Part Number/Catalog No. 2711-K5A5
Product Line Panelview 550
Display Size 5.5 inches
Display Color Monochrome LCD blue mode
Input Type Keypad(F1-F10)
Communication RS-232 (DH-485) Communication Port
Input Power 120 Volts AC
Memory 170 KB application runtime
Communication Cable 2711-NC13
Shipping Weight 6 pounds
Series A,B,C,D,E,F,G,H,X
Enclosure rating IP54/IP65
Product Lifecycle Status* Discontinued/Obsolete
