Part Number:
1756-IF8Weight:
0.35 kgDimensions:
23.5x18.3x5.3cmManufacture Year:
2022Place of Origin:
SwedenCertification:
CO,CQDescription:
ControlLogix 8 Point A/I Module
Product Description:

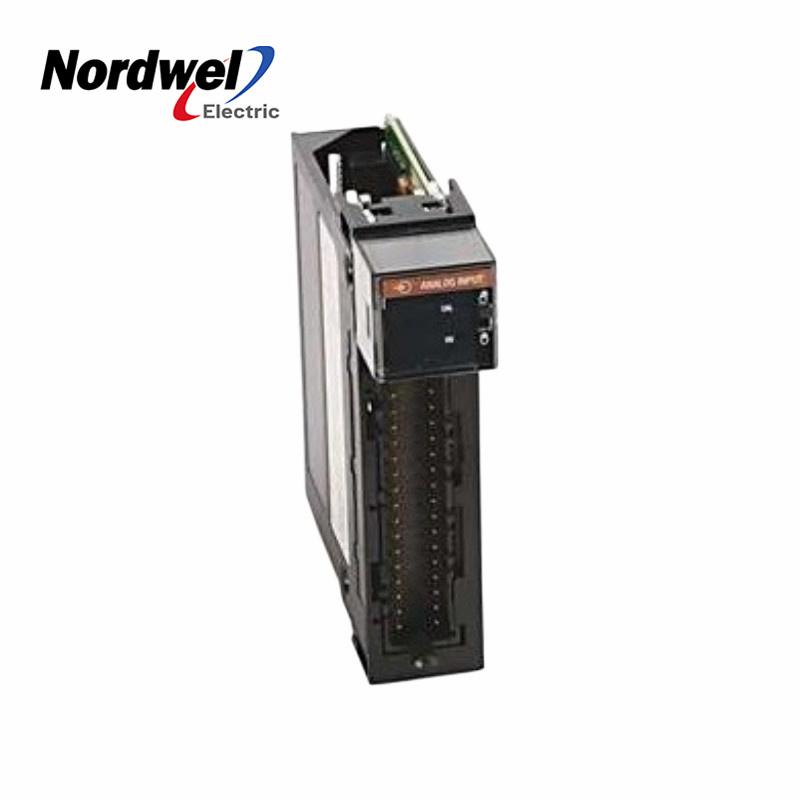

The 1756-IF8 is an analog input module from the ControlLogix Programmable Automation Controller (PAC) family. This analog input module features Eight (8) input channels that are configurable for a variety of input signals such as +/-10VDC, 0-10VDC and 0-5VDC Voltage signals and 0-20 mA Current signals. This module is typically used to interface analog signal generating instruments and devices such as transmitters, transducers, signal splitters, signal isolators, panel meters and other similarly capable devices.
The 1756-IF8 is a single slot module with a high-resolution of conversion. It has varying resolution, from 15-bit to 16-bit. Specific module resolution is ±10.25V: 320 µV/count (15 bits plus sign bipolar) for +/-10VDC, 160 µV/count (16 bits); for 0-10VDC, 80 µ/V count (16 bits); for 0-5VDC and 0…20.5mA: 0.32 µA/count (16 bits) for 0-20 mA signals.
There is virtually no limit to the number of installation instances of this module. Most ControlLogix controllers are capable of up to 4000 analog I/O signals. The 1756-IF8 may be installed in the local chassis along the controller or within distributed I/O racks.
Manager John quotes to you
sales3@askplc.com
+86 18150117685
+86 18150117685
+86 18150117685
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
|
|
