Payment:
T/TPart Number:
AR C093 AE01 / HIEE300690R0001Weight:
0.98kgDimensions:
38.1x12.6x5.8cmManufacture Year:
The latest yearPlace of Origin:
SWEDENCertification:
COODescription:

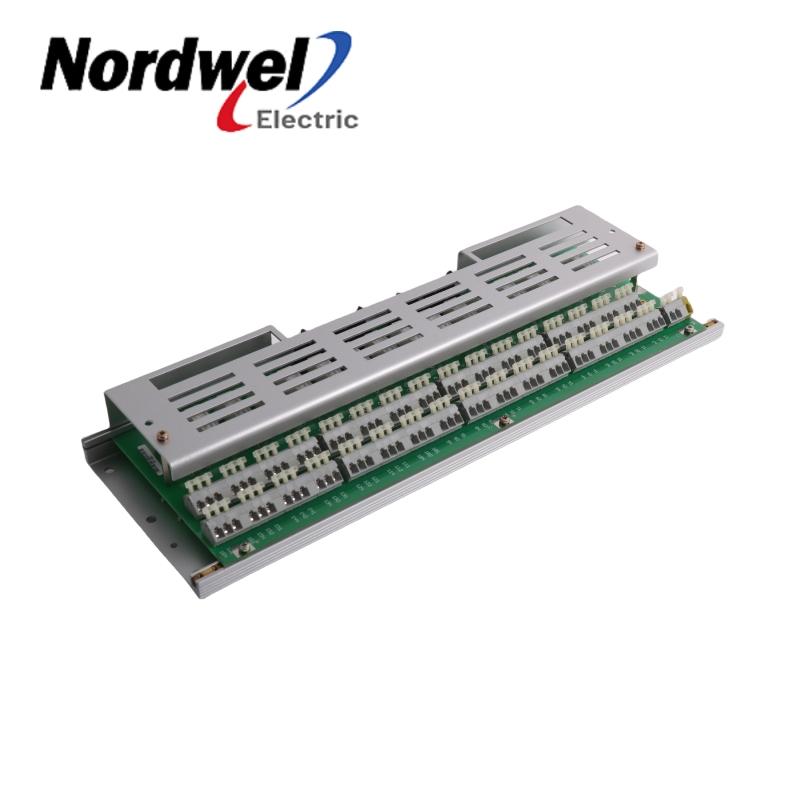

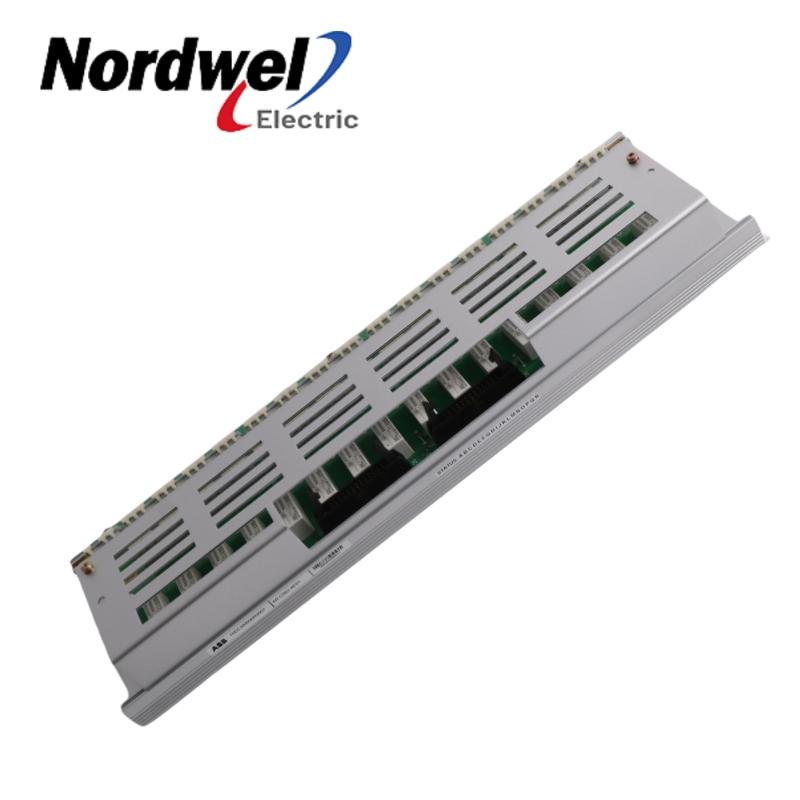

Relay Output CardTechnical Parameters
Product Number: AR C093 AE01 / HIEE300690R0001
Brand: ABB
Country of Origin: Sweden
Condition: Brand new and Original
Type: Interface BoardType: Control BoardType: Circuit BoardType: Main BoardOutput type: Relay output
Relay type: Single-pole double-throw (SPDT) relay
Number of relay outputs: 16 channels
Maximum switching voltage:
Direct current (DC): 30V DC
Alternating current (AC): 250V AC
Maximum switching current: 8A (resistive load)
Response time: Typical value is less than 10ms
Isolation voltage: 1500V RMS, ensuring electrical isolation of control signals and loads
Operating voltage: 24V DC
Power consumption: Typical value is less than 15W
Operating temperature range: -20°C to +60°C
Storage temperature range: -40°C to +85°C
Relative humidity: 5% to 95% (non-condensing)
Electromagnetic interference resistance: Complies with IEC 61000-4 standard
Mounting method: Standard 19-inch rack or DIN rail mounting
Mean time between failures (MTBF): >100,000 hours
Anti-electromagnetic interference capability: Complies with IEC 61000-4-2/3/4 standard
Feature
Relay structure: 16 independent relay output channels, each channel has the function of independent control.
Signal isolation: Each relay channel has 1500V RMS electrical isolation to prevent interference between control signals and loads.
Compatibility: This output card is suitable for various automation control systems of ABB and supports seamless integration with PLC, DCS and other systems.
Input interface: Communicate and transmit signals with the control system through the standard industrial signal input interface.
FAQ
Q: What load current does the relay output card support?
A: Each relay channel supports a maximum of 8A resistive load, ensuring that it can control high-power industrial equipment.
Q: What is the switching voltage range of the relay?
A: The relay supports switching voltages of 30V DC and 250V AC, which is suitable for a variety of different power supply types.
Q: What is the response time of the relay?
A: The typical response time of the relay is less than 10ms, ensuring fast execution of control commands.
Q: Is electrical isolation supported?
A: Yes, each relay channel has 1500V RMS electrical isolation to ensure safety and stability between the control system and the load.
Q: What is the operating temperature range of this product?
A: The operating temperature range of this output card is -20°C to +60°C, suitable for applications in various industrial environments.
Q: Can this relay output card be used in high-vibration environments?
A: Yes, the relay output card is designed to be vibration-resistant and can be used in high-vibration industrial environments.
Q: How to install this relay output card?
A: The product supports standard DIN rail or 19-inch rack mounting, which is convenient for quick integration into existing control systems.
Q: Does the product have anti-electromagnetic interference capabilities?
A: Yes, the relay output card complies with the IEC 61000-4 standard, has excellent anti-electromagnetic interference capabilities, and is suitable for complex industrial environments.
