Payment:
T/TPart Number:
INNPM22Weight:
0.28kgDimensions:
3.5x32x17.5cmManufacture Year:
The latest yearPlace of Origin:
SWEDENCertification:
COODescription:

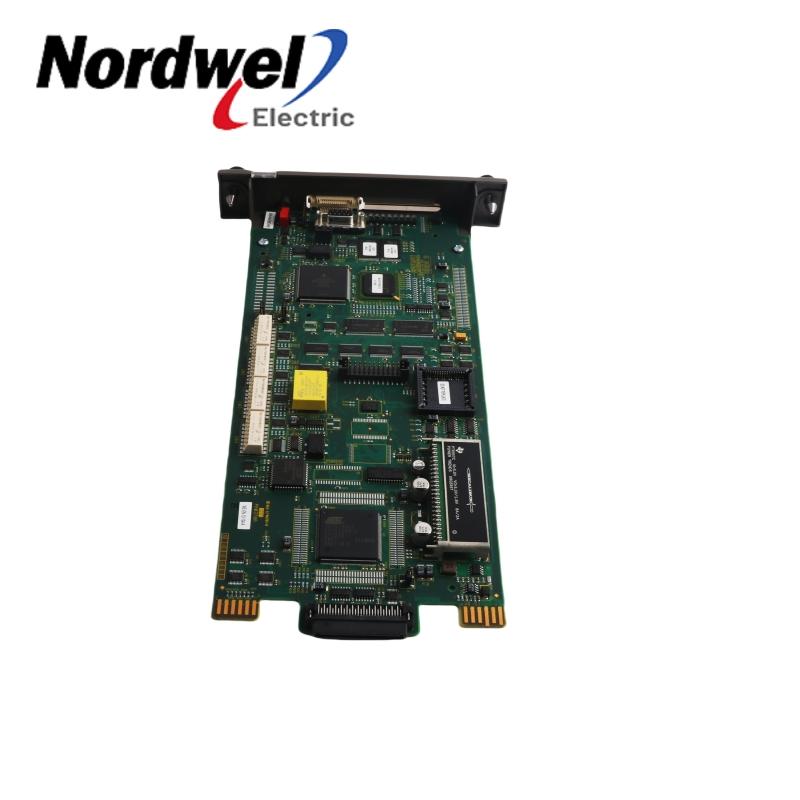

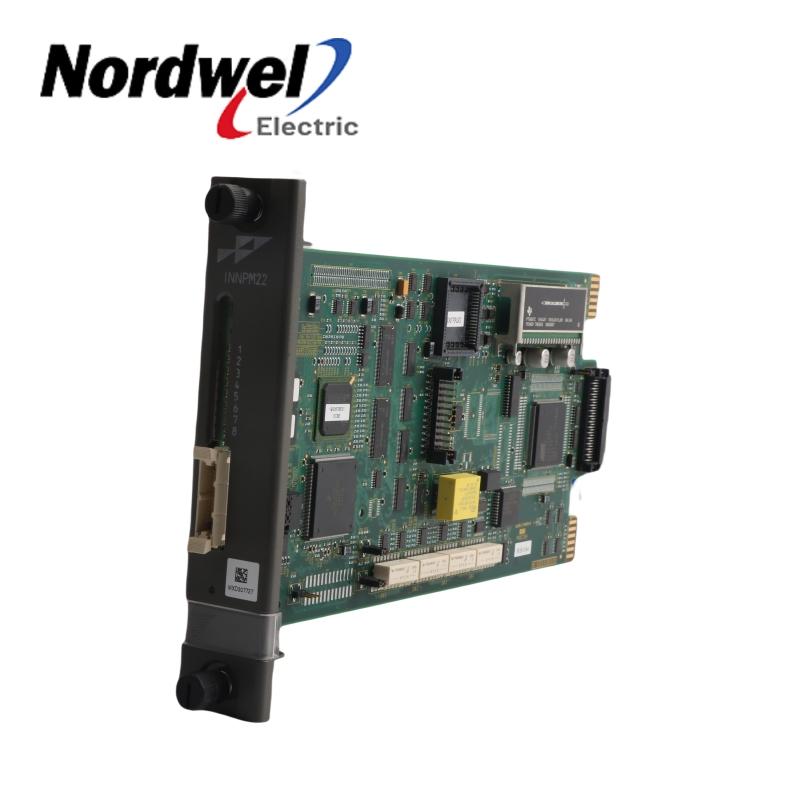

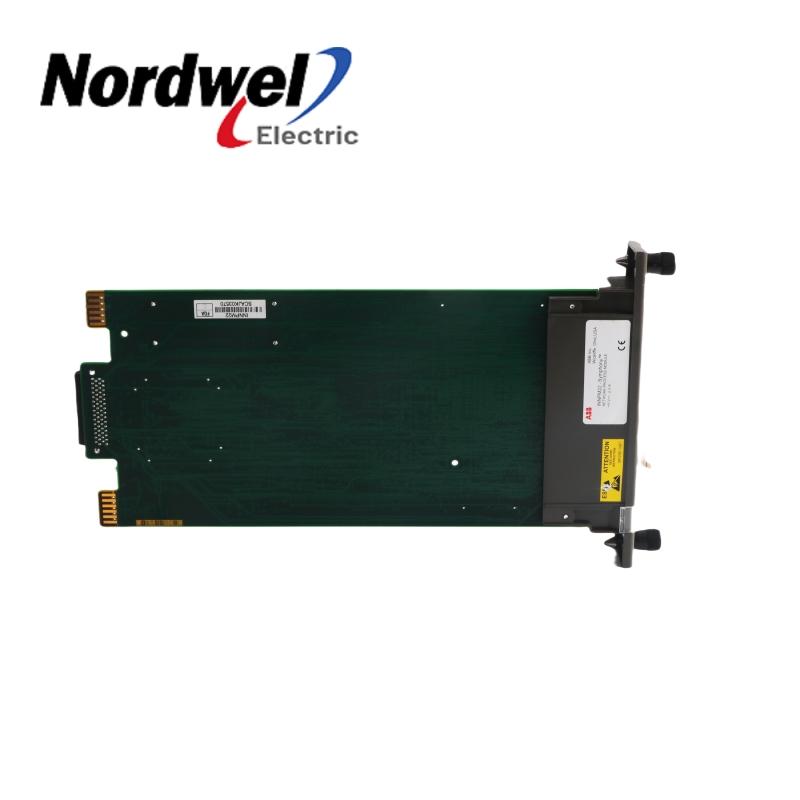

Network Processor ModuleTechnical Parameters
Product Number: INNPM22
Brand: ABB
Country of Origin: Sweden
Condition: Brand new and Original
Type: Interface BoardType: Control BoardType: Circuit BoardType: Main BoardOutput type: Relay outputProcessor type: Network Processor Module (NPM)
Communication interface:
Redundant I/O channels: Support redundant communication links
Serial interface: RS-232
Ethernet port: Support Ethernet communication
Remote I/O interface: Support remote I/O device communication
Supported protocols: Modbus, Bailey Net 90/Infi 90, TCP/IP protocol
Data transmission rate: Up to 100 Mbps (Ethernet)
Power requirements:
Input voltage: 24V DC or 48V DC
Power consumption: Typical value is less than 15W
Redundancy function: Support module-level and network-level redundant configuration
Operating system: Based on real-time operating system (RTOS) to ensure efficient real-time processing
Processing capacity: Process a large amount of data per second to support complex control and monitoring tasks
Diagnostic function: Built-in self-diagnostic function, real-time monitoring of communication and processing status
Environmental requirements:
Operating temperature: 0°C to +60°C
Storage temperature: -40°C to +85°C
Relative humidity: 5% to 95% (No condensation)
Anti-electromagnetic interference capability: Complies with IEC 61000-4-2/3/4 standard
Product Specifications
Module type: Network processor module, suitable for ABB Bailey process control and automation systems.
Communication support: The INNPM22 module supports multiple communication protocols, including Modbus and Ethernet protocols, and can be integrated with various control systems and I/O devices.
Redundant communication: The module supports redundant communication links, which can ensure that the system can continue to operate when the communication link fails, improving system reliability.
Expandability: The module supports seamless integration with other ABB Bailey devices, facilitating system expansion and upgrades.
Remote control support: Supports remote access and control functions, and can perform system configuration and troubleshooting at remote locations.
Feature
Powerful network processing capabilities: INNPM22 has the ability to handle high-density data streams, and can handle multiple I/O signals and communication requests at the same time to ensure real-time monitoring and control.
Redundant design: Supports redundant configuration to ensure that in the event of a single point of failure, the system can automatically switch to a backup link or module to ensure continuous operation of the system.
Multi-protocol support: Supports multiple communication protocols, including Modbus and TCP/IP, suitable for different industrial networks and devices, and improves system compatibility.
Real-time operating system: The module runs on a platform based on a real-time operating system (RTOS), ensuring efficient and low-latency processing capabilities, and is suitable for application scenarios with strict requirements on response speed.
Self-diagnosis function: The built-in self-diagnosis function can detect the system status in real time, quickly identify communication or handle faults, and reduce downtime.
Easy to integrate: The module is compactly designed and easy to integrate with existing ABB Bailey process control systems and third-party systems.
Industrial-grade reliability: The module can work in harsh industrial environments and has strong anti-electromagnetic interference and environmental adaptability.
