SAC-RL100-M11
SAC-RL100-M11

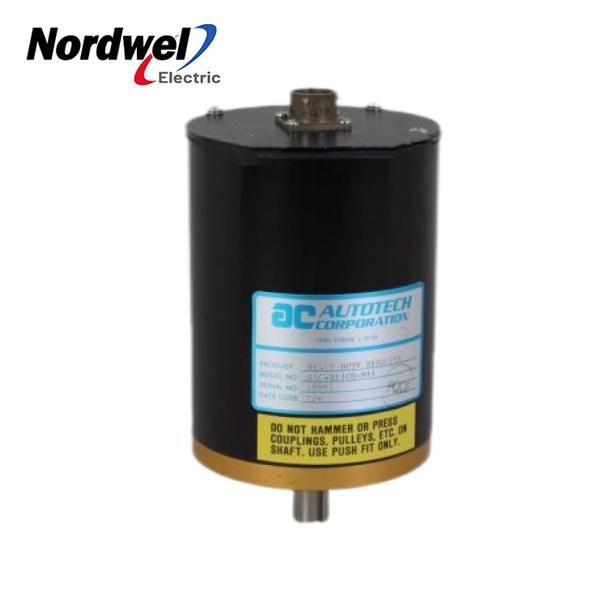

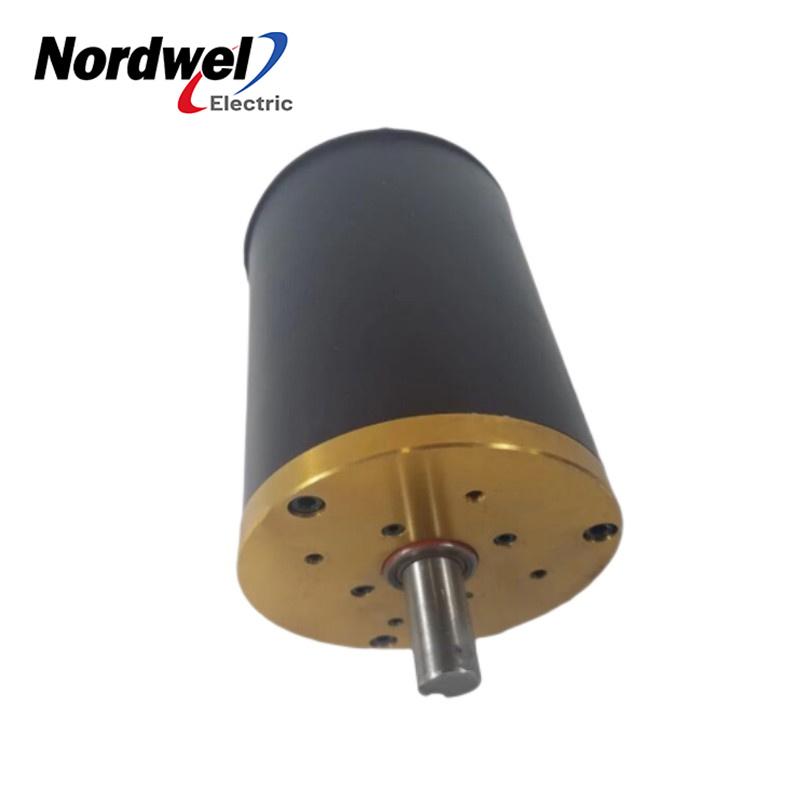

AUTOTECH | SAC-RL100-M11 | 10PIN MALE CONNECTION


  • Part Number:

    SAC-RL100-M11
  • Weight:

    0.5 kg
  • Dimensions:

    4 cm x 8 cm x 13.5 cm
  • Manufacture Year:

    2022
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    10PIN MALE CONNECTION

Product Description:

Autotech’s Model RL100 resolver is the most rugged resolver in the industry today. Autotech has over 25,000 of these resolvers operating with extreme reliability in highly demanding applications in automotive, can-manufacturing and packing industries. Rugged industrial housing, heavy duty double row ball bearings, and an internal flexible coupling lend to an extremely reliable design.
The resolver is a passive transducer. It is a brushless rotary transformer with one rotor and two stator windings. The stator windings are electrically 0 degrees out of phase with each other. As the shaft rotates, the relative position of the rotor and the stator windings change. Either the rotor or the two stator windings together can be used as the primary of the rotary transformer and the secondary will then produces an analog voltage corresponding to the shaft position.


Manager John quotes to you

 sales3@askplc.com         +86 18150117685


  +86 18150117685             +86 18150117685



1)Fast delivery:
2)Various payment:
3)Long warranty:  we offer original new with 1 year warrenty


4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
