Payment:
T/TPart Number:
DO232Weight:
0.22kgDimensions:
5.4x5.5x11.8cmManufacture Year:
The latest yearPlace of Origin:
AustriaCertification:
COODescription:
Module—— Specifications：

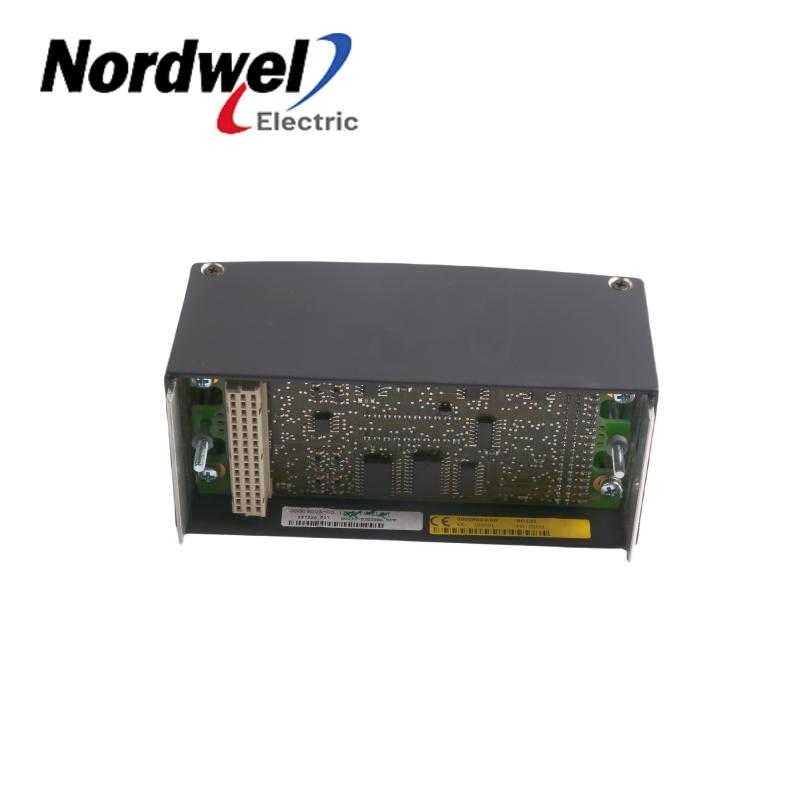

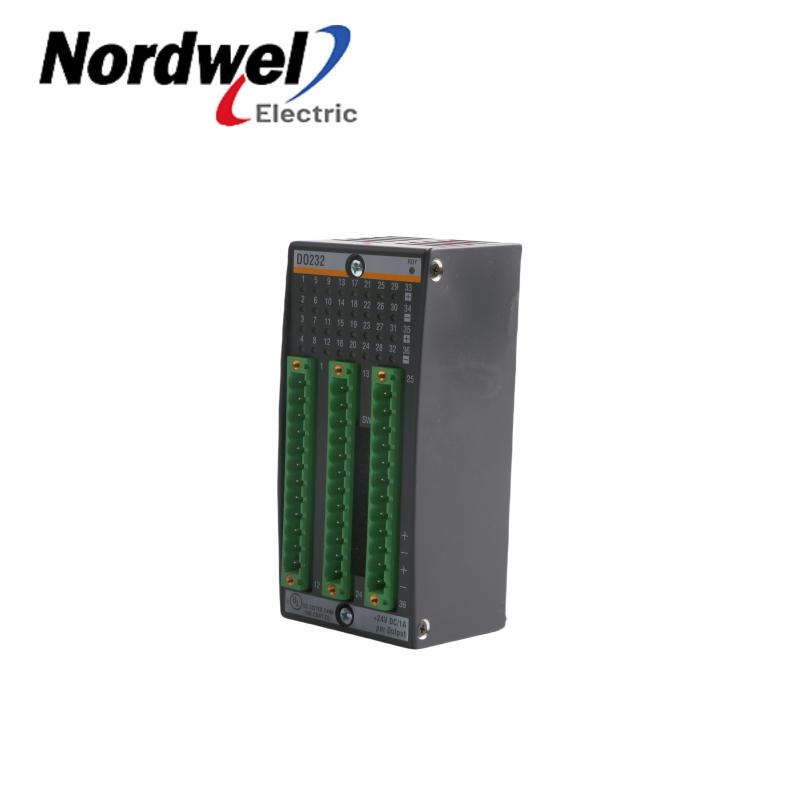

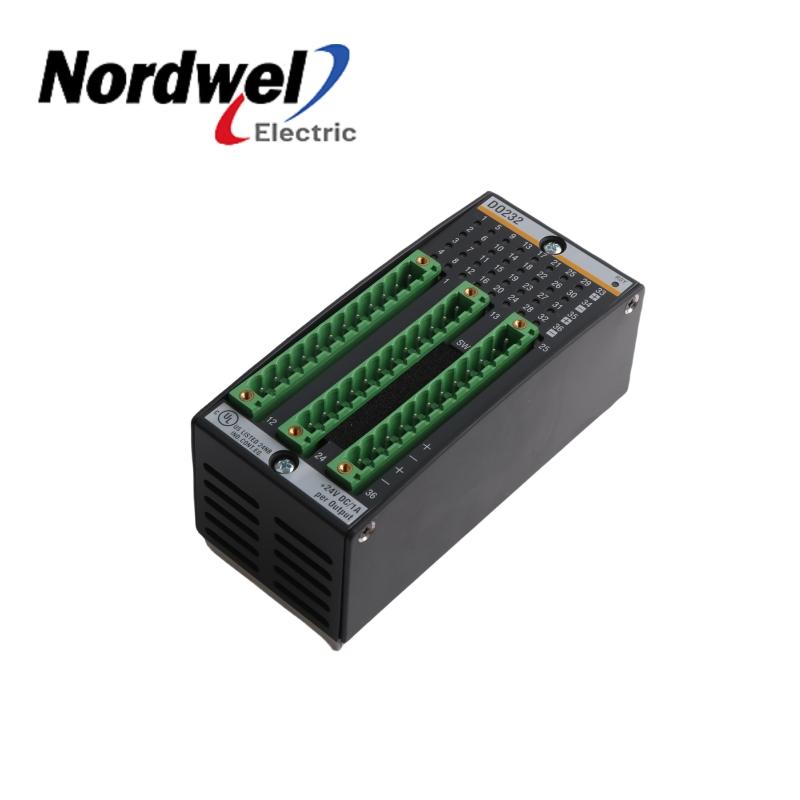

Model: DO232
Brand: Bachmann
Condition: Brand New and Origin
Output points: 32 output points.
Output voltage: 24V DC.
Output current: 1A per output point, 4A total current.
Electrical isolation: 300V electrical isolation between output and system, 500V electrical isolation between output groups.
Signal level: low level - 34 to + 5V, high level + 15 to + 34V.
Output delay: 3ms for normal filter passing, 50μs for interrupt input maximum delay.
Inquiry： Jenny Chan E-mail: sales3@mooreplc.com
Phone/Whatsapp/Skype: +86 18020714662
—— Feature：
Operating temperature: -25℃ to + 100℃.
Operating voltage: 2-20V DC.
Module size: 5.5cm x 5.5cm x 12cm.
Module weight: 0.26kg.
Power consumption: 80mA at 5V voltage.
Flexible output points: 32 Digital output points can be connected to multiple digital actuators, such as relays, contactors, signal lights, valves, etc., to meet the output requirements of industrial automation control systems of different scales, and are suitable for a variety of complex industrial scenarios.
—— Frequently Asked：
Q: What is the number of output points of Bachmann DO232?
A: The number of output points of Bachmann DO232 is 32.
Q: What are the output voltage and current of this module?
A: The output voltage is 24V DC, the maximum current of each output point is 1A, and the maximum total current is 4A.
Q: Does DO232 have electrical isolation function?
A: Yes, there is 300V electrical isolation between the output and the system, and 500V electrical isolation between output groups.
Q: What is the operating temperature range of the module?
A: The operating temperature range is - 25℃ to + 100℃.
