Part Number:
531X305NTBANG1Weight:
0.54kgDimensions:
28cmX21.4cmX3cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:
General Electric/GE Fanuc 531X305NTBANG1 NTB/3TB Terminal Board
|
Manufacturer: |
General Electric |
|
Part Number: |
531X305NTBANG1 |
|
Series: |
Mark V ,531X Series |
|
Full Description: |
General Electric 531X305NTBANG1 NTB/3TB Terminal Board
|
|
Status: |
In stock |
| Warranty | 12 Months |

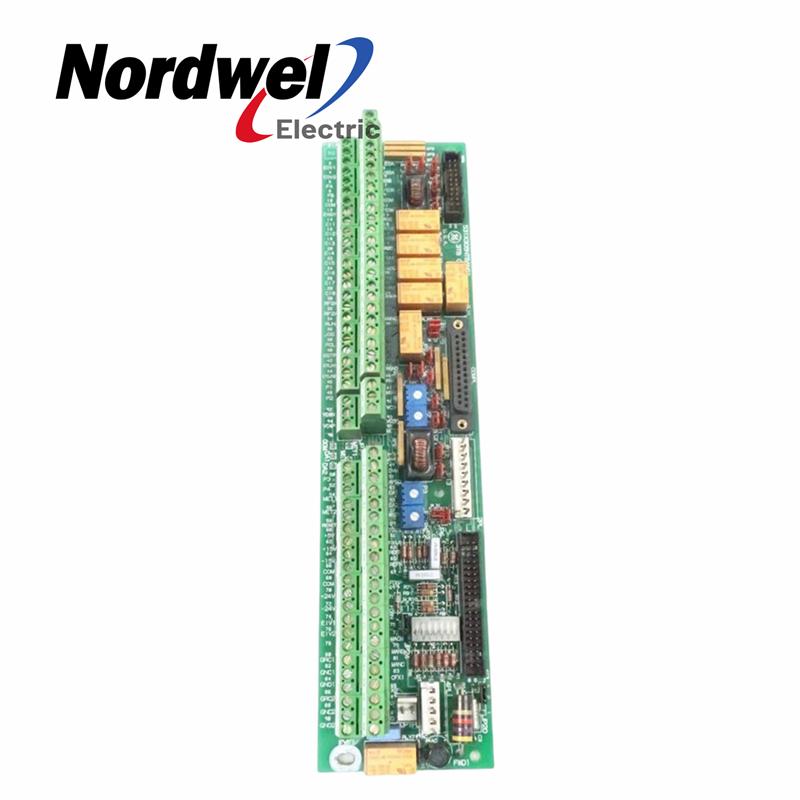

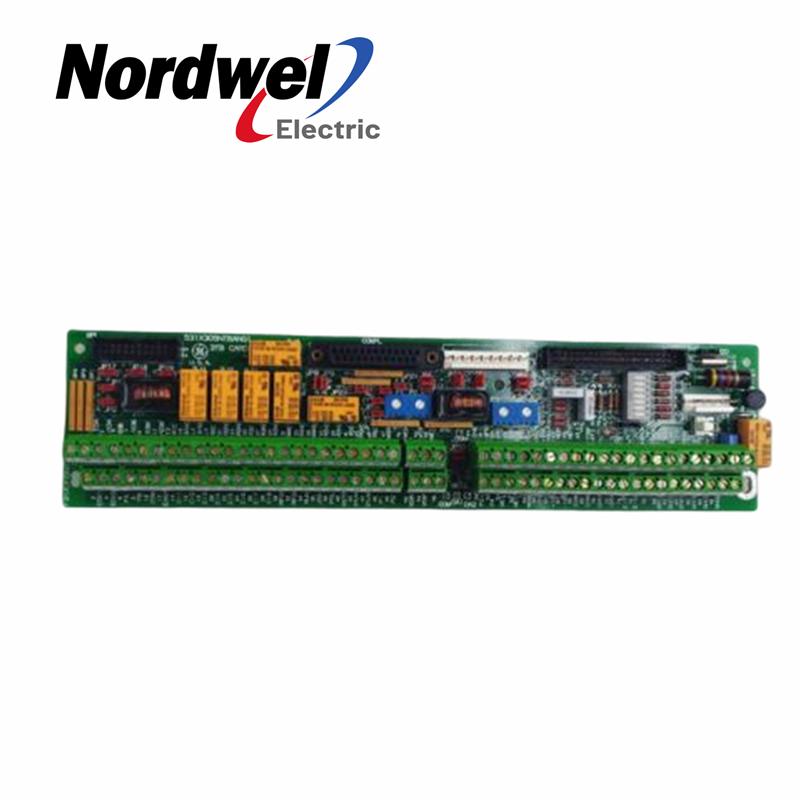

General Electric manufactured the 531X305NTBANG1 card to function as an NTB/3TB terminal board.
This terminal board was developed as a member of the 531X series of replacement drive and exciter boards.
A number of interfacing system features are provided by this board. Capabilities of the card include relay and
serial outputs, analog I/O, power supplies, and encoders.
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
When this NTB/3TB terminal board is installed, it provides an array of functions to the drive. When installed
531X305NTBANG1 is capable of producing both regulated and unregulated power supplies. Regulated supplies
rate at 5 VDC and 15 VDC while unregulated supplies can rate at 24 VDC or 125 VAC. Encoders rated at 5 V and
15 V can be configured using the onboard jumpers. The board also includes seven relay outputs that are comprised
of either form A or form C outputs. Contacts within each relay have a rating of 120 VAC. Low level analog I/O can also
be scaled using the four potentiometers found on board.
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
