Part Number:
DS200FCSAG1A DS200FCSAG1ACBWeight:
0.18kgDimensions:
22.8cmX12.6cmX2cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

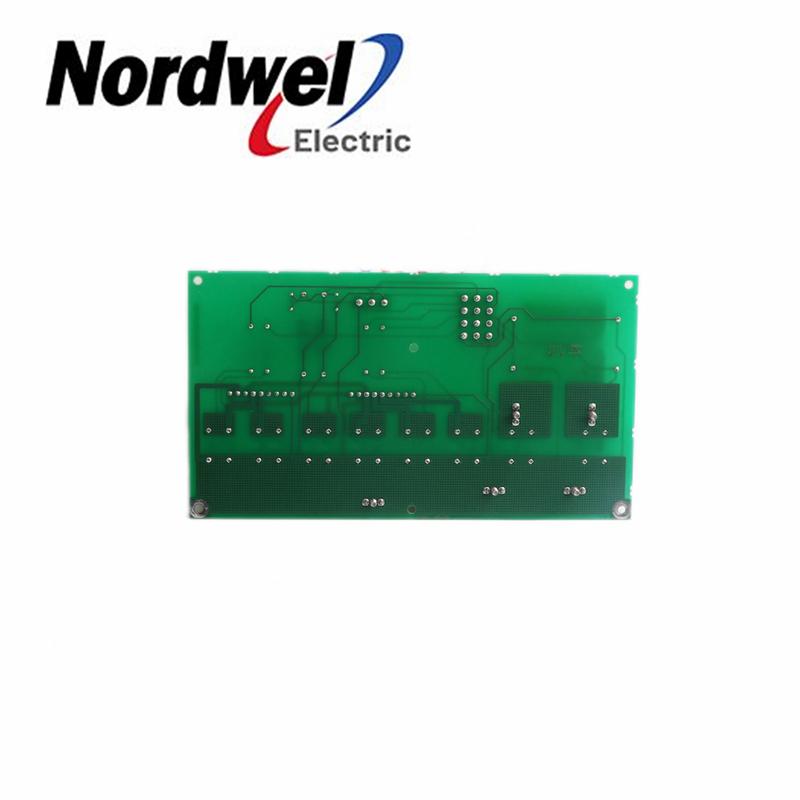

General Electric/GE Fanuc DS200FCSAG1A DS200FCSAG1ACB Current Sensing Feedback Board
|
Manufacturer: |
General Electric |
|
Part Number: |
DS200FCSAG1A DS200FCSAG1ACB |
|
Series: |
LS2100 |
|
Full Description: |
General Electric DS200FCSAG1A DS200FCSAG1ACB
Current Sensing Feedback Board
|
|
Status: |
In stock |
| Warranty | 12 Months |
DS200FCSAG1A Technical Specifications
Board Type Current Sensing Feedback Board
Functional Acronym/Abbreviation FCSA
Parts Manual GEI-100222
Series LS2100
Standards CSA, UL, and CE
Supply Frequency 50 or 60 Hz
Current Sensing Feedback Board DS200FCSAG1A is part of the LS2100 Series produced by General Electric.
This model is installed in the Static Starter Power Conversion Cabinet. When being operated this model is used
in conjunction with a Control Power Supply (CPS). During the operation of both the CPS and FCSA, the CPS will
produce several voltage levels, these being five, twelve, fifteen, and twenty-four volts, these voltages are produced
specifically for the FCSA board and VME card rack.
The DS200FCSAG1A model can be used in a load bridge operation setting. When the model is in this setting
voltages need to be verified by the LEMPS plug at the N15 (pin 3), ACOM (pin 2), and the P15 (pin 1). Once
this has been done the LEMPS plug can be reconnected to the the FCSA. On the front of the board there are
two connectors, the twelve-pin connector is the CSPL, while the three-pin connector is the LEMPS plug.
