Part Number:
IC670MDL740Weight:
0.46kgDimensions:
12.6cmX8.2cmX8.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

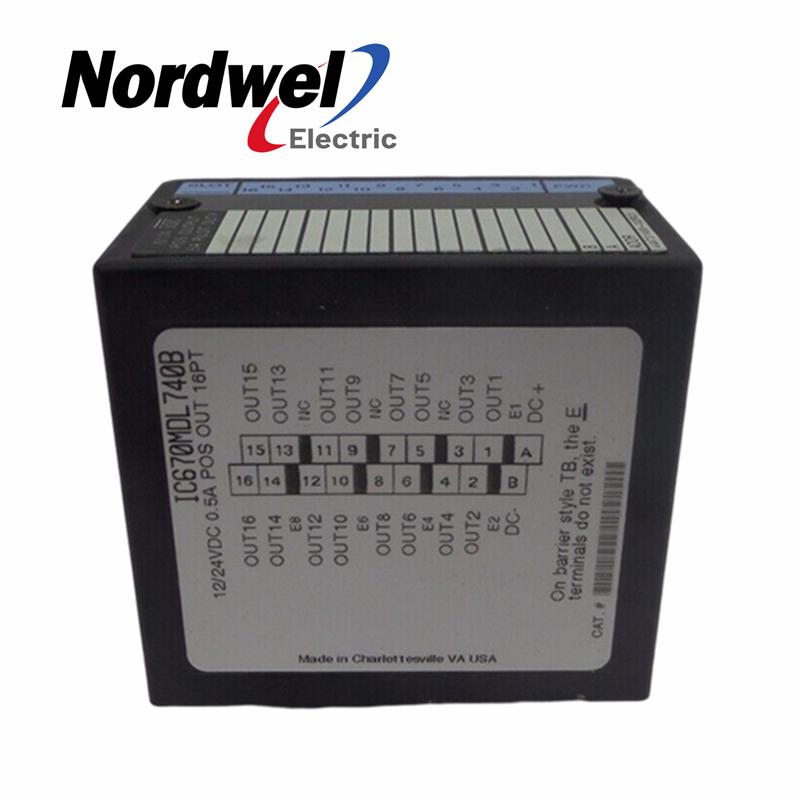

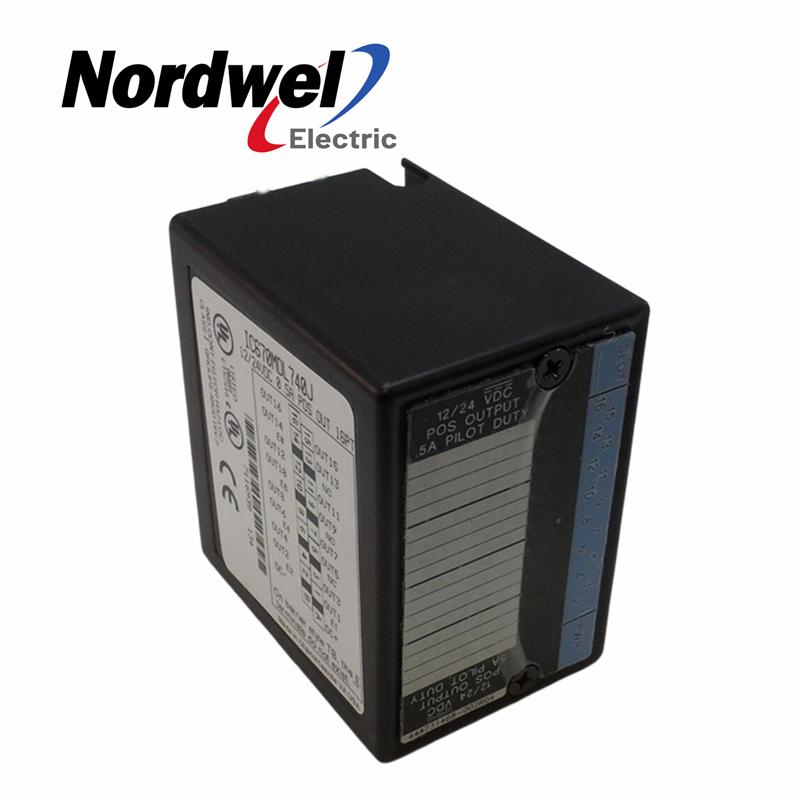

General Electric/GE Fanuc IC670MDL740 12/24 VDC Positive Output Module
Full description:
The IC670MDL740 output module is a DC positive output module manufactured by GE Fanuc. It consists of 16
sourcing type discrete outputs that switch the loads to the positive side of the DC supply. The required power for
the module is supplied by the Bus interface unit or BIU’s power supply. The IC670MDL740 output module also
has the facilities to connect an external power supply through a 5-Amp fuse. It offers individual LEDs for each
output point on the logic side and they are visible through the transparent portion of the top plate of the module.
The outputs can switch the load within the range of 10 to 30 Volts DC with a nominal voltage of 24 Volts DC and
4 Amps of maximum current.
Technical Description of IC670MDL740
The Field Control IC670MDL740 DC Positive Output Module is a GE Fanuc 12/24 Volts DC output module with 16
grouped positive points. It comes with 10 to 30 Volts DC of user input voltage, 9.2 to 29.5 Volts DC of output
voltage, and 0.5 Amps of maximum load current from 10 to 30 Volts DC voltage.
