Part Number:
IC693MDL231Weight:
0.28kgDimensions:
3.5cmX13cmX13.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

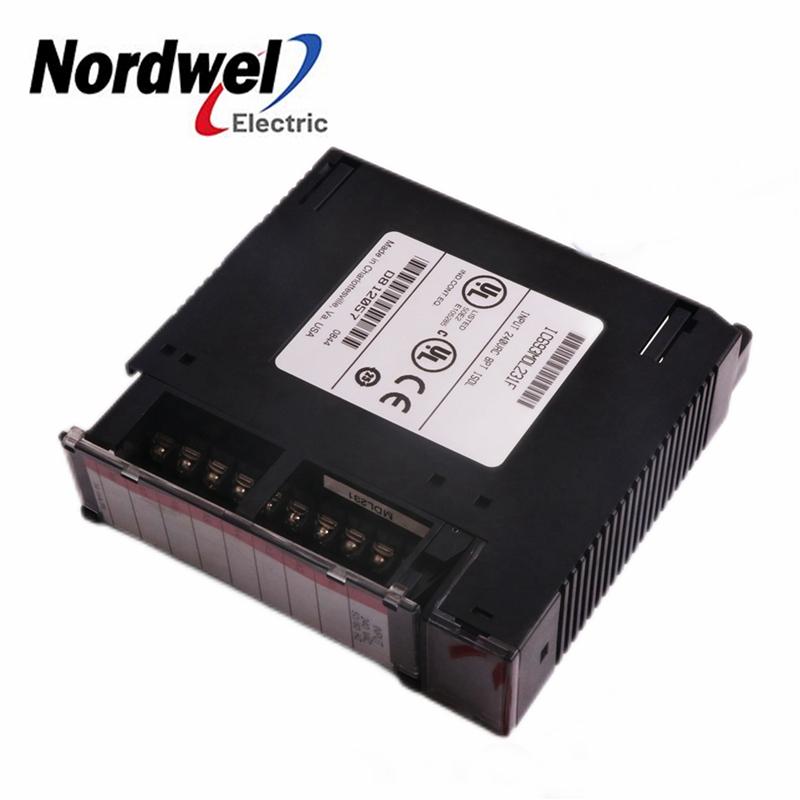

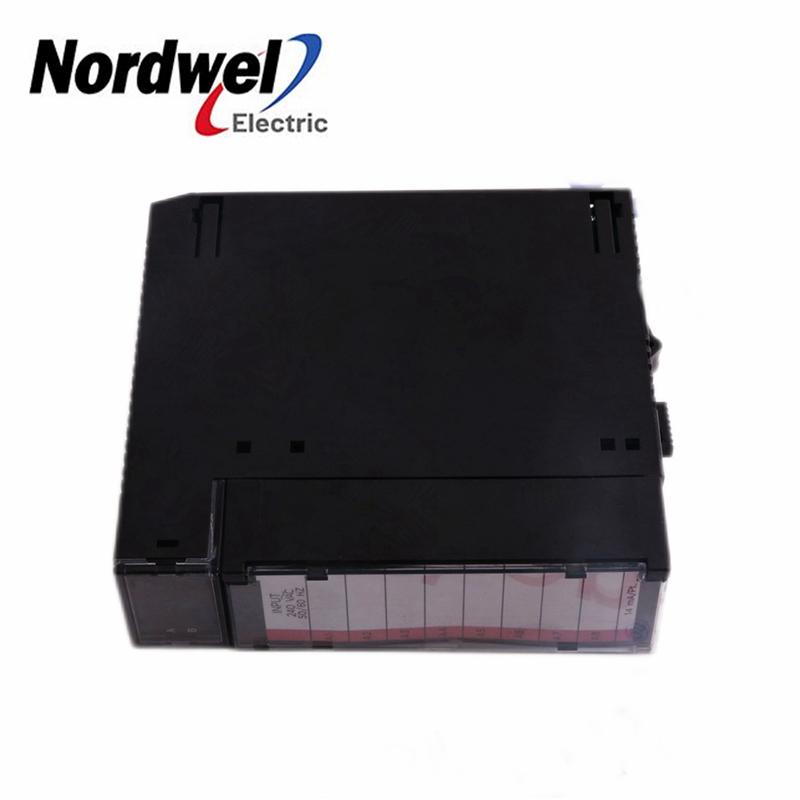

General Electric/GE Fanuc IC693MDL231 240 volt AC Isolated Input module
Manufacturer:
Part Number:
IC693MDL231
Series:
90-30
Full Description:
General Electric IC693MDL231 Isolated Input module
Status:
In stock
General Electric
Warranty
12 Months
240 Volt AC Isolated Input, 8 Point
The 240 volt AC Isolated Input module for the Series 90-30 Programmable Logic Controller
provides 8 isolated input points, each with a common power input terminal. The input circuits are
reactive (resistor/capacitor) inputs. Current into an input point results in a logic 1 in the input
status table (%I). Input characteristics are compatible with a wide range of user-supplied input
devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate
the field devices must be supplied by the user. This module requires an AC power source, it
cannot be used with a DC power source.
LED indicators which provide the ON/OFF status of each point are located at the top of the
module. This LED block has a horizontal row with eight green LEDs labeled A1 through 8
(points 1 through 8). An insert goes between the inside and outside surface of the hinged door.
The surface towards the inside of the module (when the hinged door is closed) has circuit
wiring information, and circuit identification information can be recorded on the outside
surface. The outside left edge of the insert is color-coded red to indicate a high-voltage
module.
This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
Specifications for IC693MDL231
Rated Voltage 240 volts AC, 50/60 Hz
Input Voltage Range 0 to 264 volts AC, 50/60 Hz
Inputs per Module 8 (each input point has a separate common)
Isolation 1500 volts RMS between field side and logic side
500 volts RMS between inputs
Input Current 15 mA (typical) at rated voltage
Input Characteristics:
On-state Voltage 148 to 264 volts AC
Off-state Voltage 0 to 40 volts AC
On-state Current 6 mA minimum
Off-state Current 2.2 mA maximum
On response Time 30 ms maximum
Off response Time 45 ms maximum
Power Consumption 60 mA (all inputs on) from 5 volt bus on backplane
