Part Number:
IC697MDL350Weight:
0.3kgDimensions:
28.8cmX7.2cmX3.8cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

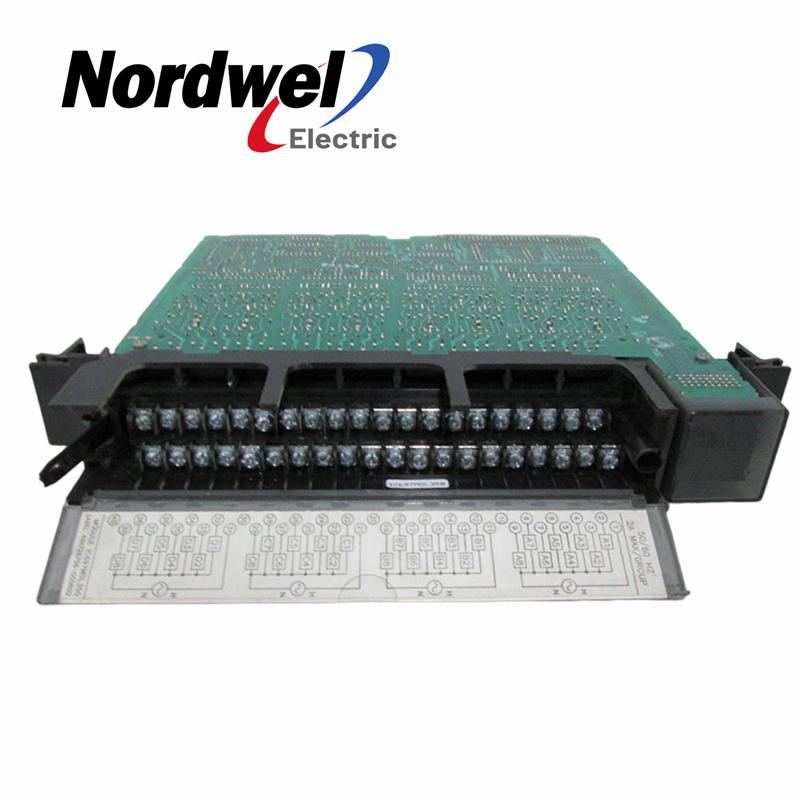

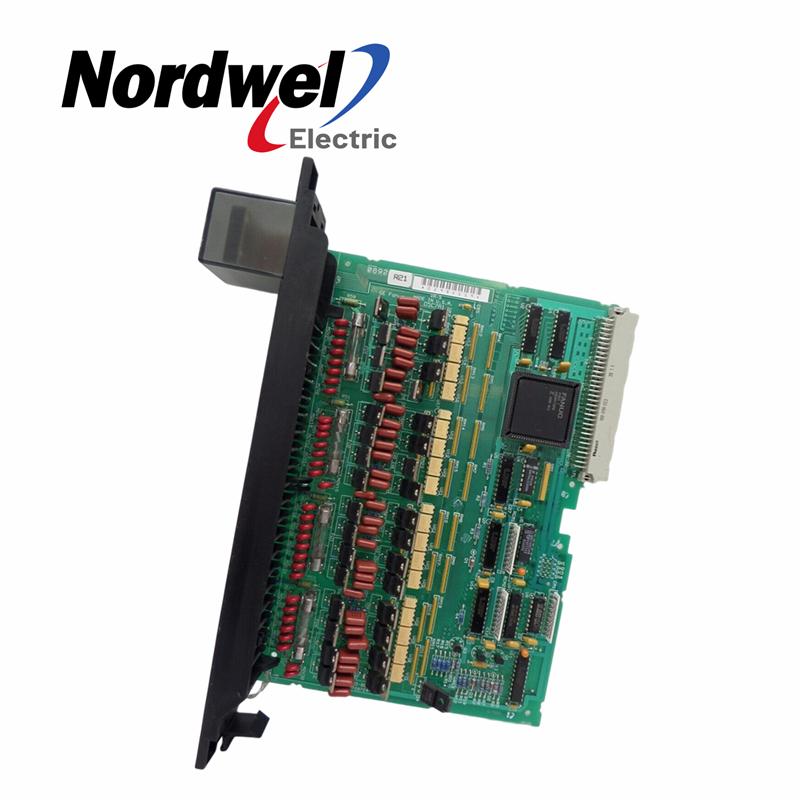

General Electric/GE Fanuc IC697MDL350 Series 90-70 discrete output module
Overview:
120 Volt AC 0.5 Amp, 32-Point Output Module
IC697MDL350 is a 120 VAC 0.5 Amp, 32-Point Discrete Output Module in the GE Fanuc Series 90-70.
The 120 Volt AC 0.5 Amp Output Module provides 32 output points in four isolated groups of 8 points each.
This allows each group of 8 points to be used on a different phase of the AC supply. Each group of 8 outputs is
individually fused with a 5 amp fuse.
The module provides a high degree of inrush current which makes the outputs suitable for a wide range of
inductive and incandescent loads. The module will pick up most size 2 contactors.
LED indicators which give the ON-OFF status of each point on the logic (PLC) side of the circuits as well as
an LED to indicate the status of the fuses are located together at the top of the module.
Technical Specifications
Rated Voltage: 120 volt AC
Number of Outputs: 32 Outputs (4 groups of 8)
Output Current: 0.5 Amps per point, 2 Amps per group
Current Required: 0.5 Amps
Freq: 47 to 63 Hz
DC Power: No
Manager Steve quotes to you
cn@mooreplc.com
+8618005028963
we offer original new with 1 year warrenty
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
