Part Number:
IS200ESELH1A IS200ESELH1AAAWeight:
0.22kgDimensions:
2cmX18.6cmX26.1cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

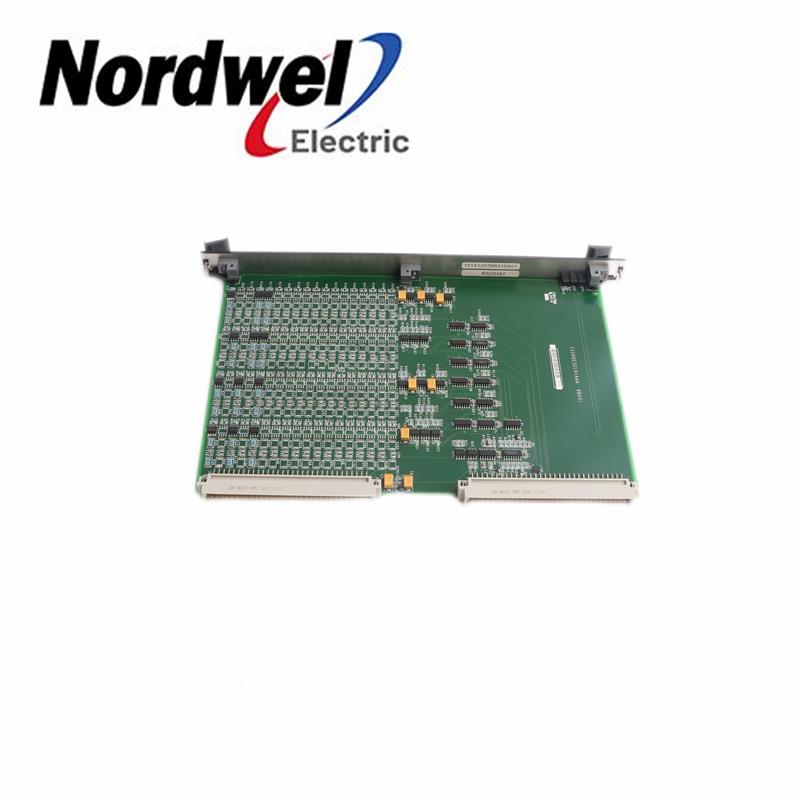

General Electric/GE Fanuc IS200ESELH1A IS200ESELH1AAA EX2100 EXCITER SELECTOR CARD
|
Manufacturer: |
General Electric |
|
Part Number: |
IS200ESELH1A IS200ESELH1AAA |
|
Series: |
Mark VI |
|
Full Description: |
General Electric IS200ESELH1A IS200ESELH1AAA
EX2100 EXCITER SELECTOR CARD
|
|
Status: |
In stock |
| Warranty | 12 Months |
The IS200ESELH1A is an Exciter Selector Board, this board was once produced by General Electric under the
EX2100 series. When this board is being used it will receive six logic level pulse signals from the EMIO that it is
connected to. The signals received will be sent up a set of six cables, and the signals are then distributed to EGPA
boards. If while using this board redundant controls are being used two IS200ESELH1A models must be used.
There are three different groups of ESEL boards, ESEL1, ESEL2, and ESEL3, depending on the group there will be
a set number of bridge drivers, as this model is an ESEL1 model, only one bridge driver is needed. The ESEL
model is integral to operating other boards within the EX2100 system, as mentioned above the ESEL model sends
gate pulse signals to the EGPA board, once the signals have been received by the EGPA board the signals will then
be used to control SCR gate firing.
Two manuals can be used when installing and operating the IS200ESELH1A board, one is the GEH-6632 EX2100
Excitation Control User’s Guide, this manual is typically used for the EX2100 series but it contains information about
the ESEL boards on page forty-eight; the other manual best used with this model is the GEI-100456 IS200ESEL
Exciter Selector Board Manual.
The control boards are located in the control module. This module consists of the
exciter backplane (EBKP) and the metal chassis that holds the boards (refer to Figure
3-1). The control boards are as follows:
• IS200DSPX Digital Signal Processor control board (DSPX)
• IS215ACLA Application Control Layer Module (ACLA)
• IS200EISB Exciter ISBus Board (EISB)
• IS200EMIO Exciter Main I/O board (EMIO)
• IS200ESEL Exciter Selector board (ESEL)
