Payment:
T/TPart Number:
700-323-1BL00Weight:
1.5kgDimensions:
35x25x5cmManufacture Year:
The latest yearPlace of Origin:
GermanyCertification:
COODescription:
Module. > Parameters < .

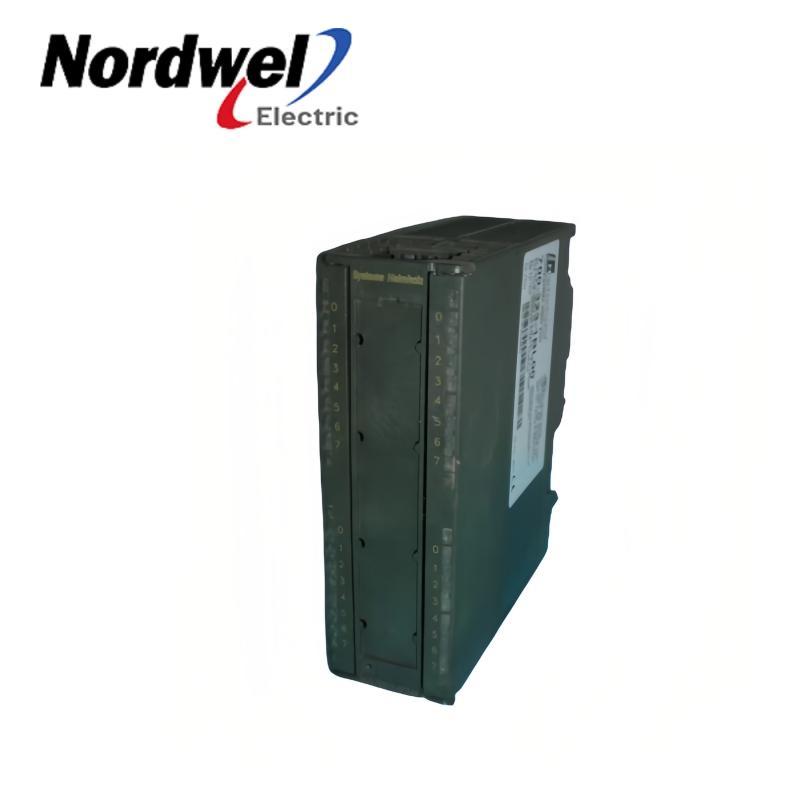

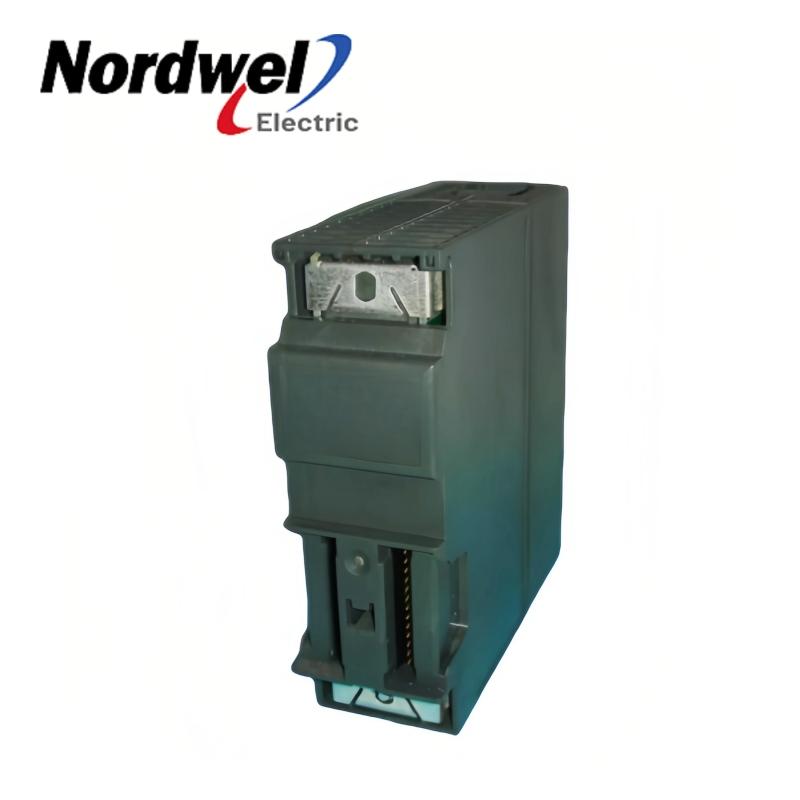

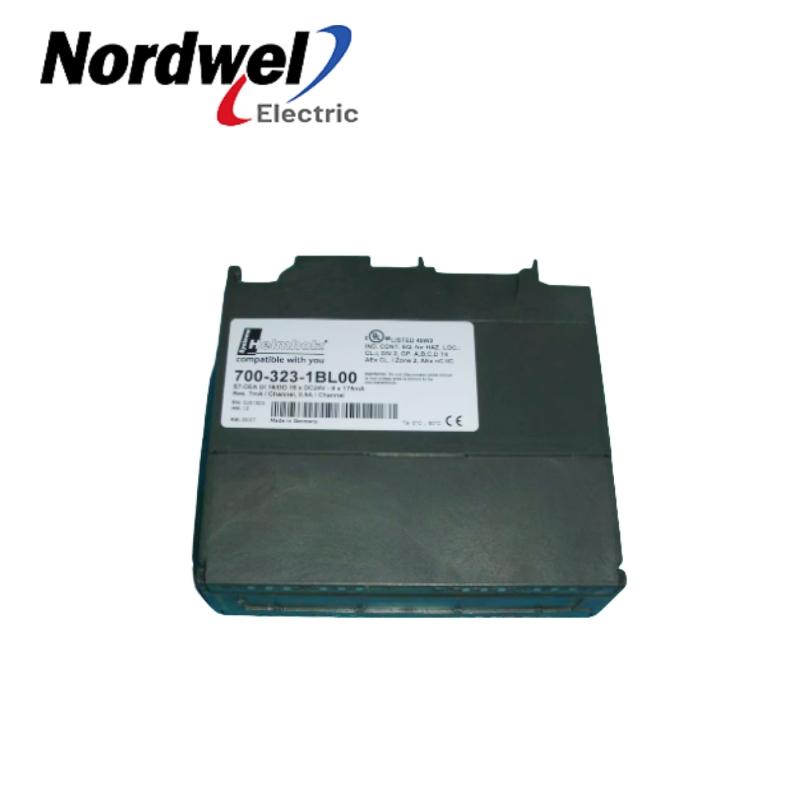

Model: 700-323-1BL00
Brand: Helmholz
Condition: Brand New and Origin
Inputs: 16 digital inputs (DC 24 V), compatible with a voltage range of -3V to +5V for logic 0 and +13V to +30V for logic 1.
Outputs: 16 digital outputs, each with a maximum current rating of 0.5 A at 24 V DC.
Power Consumption: The module typically dissipates 6.8W under nominal operating conditions.
. > Jenny Chan < . | E-mail: sales3@mooreplc.com | Phone/Whatsapp/Skype: +86 18020714662
. > Feature < .
Input Delay: The input response time varies between 1.2 ms to 4.8 ms.
Cable Length: For unshielded cables, the maximum length is 600 meters, while for shielded cables, it is 1000 meters.
Electrical Isolation: The module provides electrical isolation from the backplane via optocouplers.
Short-circuit Protection: The outputs are equipped with electronic short-circuit protection, ensuring safety in the case of faulty circuits.
Inductive Load Protection: The module can handle inductive loads, with an inductive cutoff voltage limit of -48 V.
. > Application < .
This module is ideal for use in industrial automation systems requiring reliable and flexible digital I/O control. It can be employed in various automation tasks like controlling sensors, switches, or actuators in factory automation, process control, or machinery control systems.
