Part Number:
CC-PAIH01 51405038-175Weight:
0.4kgDimensions:
5.5cmX16cmX14.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

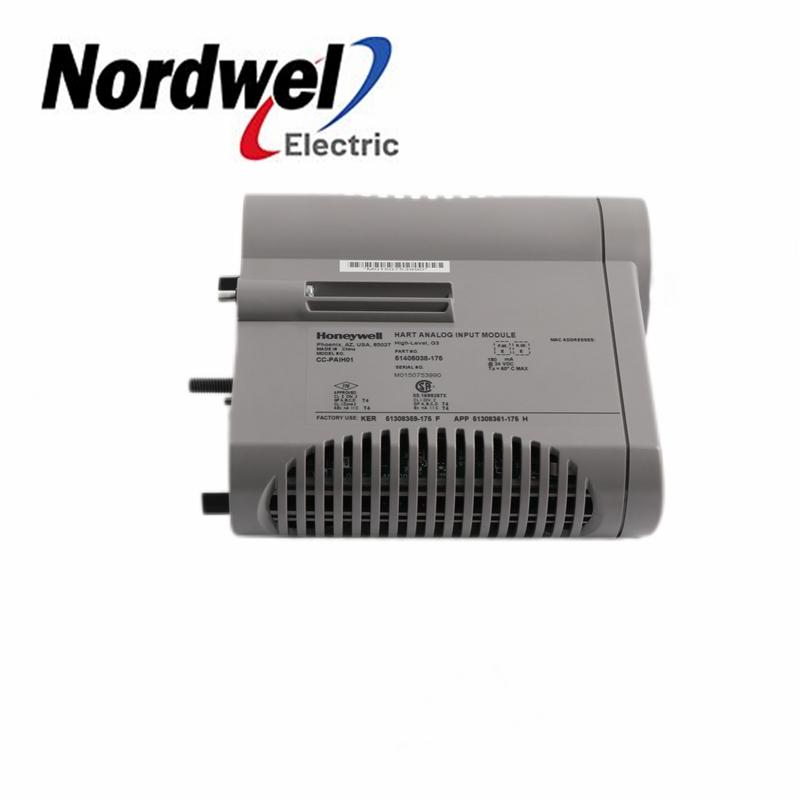

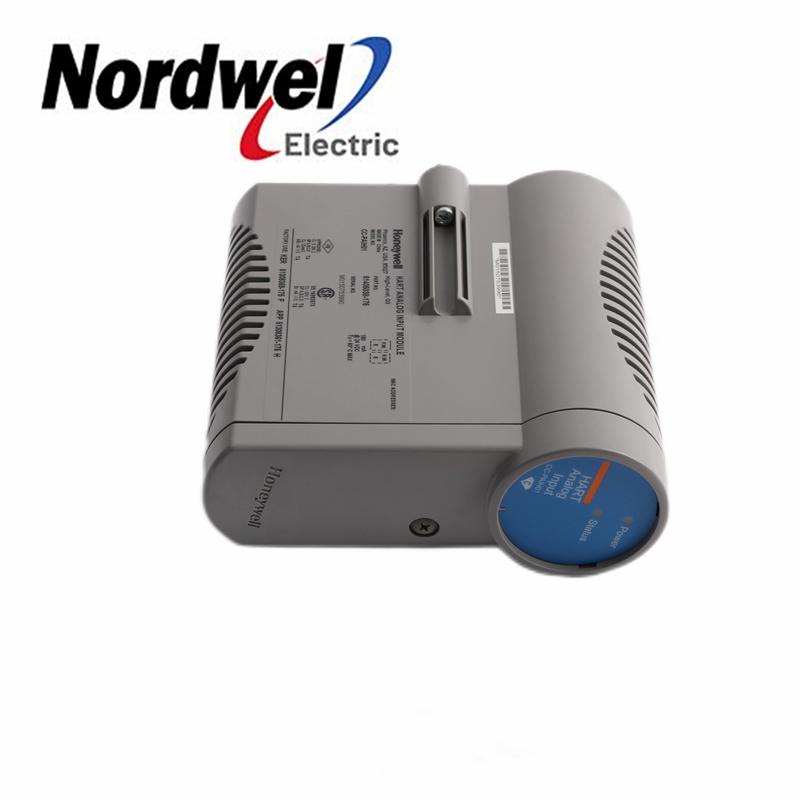

HONEYWELL CC-PAIH01 51405038-175 High Level Analog Input with HART (4) IOM
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
CC-PAIH01 51405038-175 |
|
Description: |
HONEYWELL CC-PAIH01 51405038-175 |
|
Full Description: |
HONEYWELL CC-PAIH01 51405038-175 High Level Analog Input with HART
|
|
Status: |
In stock |
| Warranty | 12 Months |
Function
The Analog Input Module accepts high level current or voltage inputs from transmitters and sensing devices.
Notable Features
Extensive self diagnostics
Optional redundancy
Open Wire Detection
Supplies non-incendive field power
Non-incendive Power
HART-capable, multivariable instruments and multiple
modems for fast collection of control variables
Fast loop scan
PV protection through a open wire detection diagnostic
Open-wire Bad PV Detection
CC-PAIH01 supports voltage inputs for channels 13-16. Each channel's 250-Ohm load resistor is connected
to the input
terminal through a wire jumper on the IOTA. This jumper should be cut by the user on channels to be used
with voltage
transmitters. For channels 13-16 the low-side input connection is normally connected to system common by
a wire jumper on
the IOTA. This jumper may be cut by the user to enable differential operation subject to operate within the
CMV specification.
