Part Number:
CC-TDOB11 51308373-175Weight:
0.55kgDimensions:
30.8cmX12.1cmX5.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

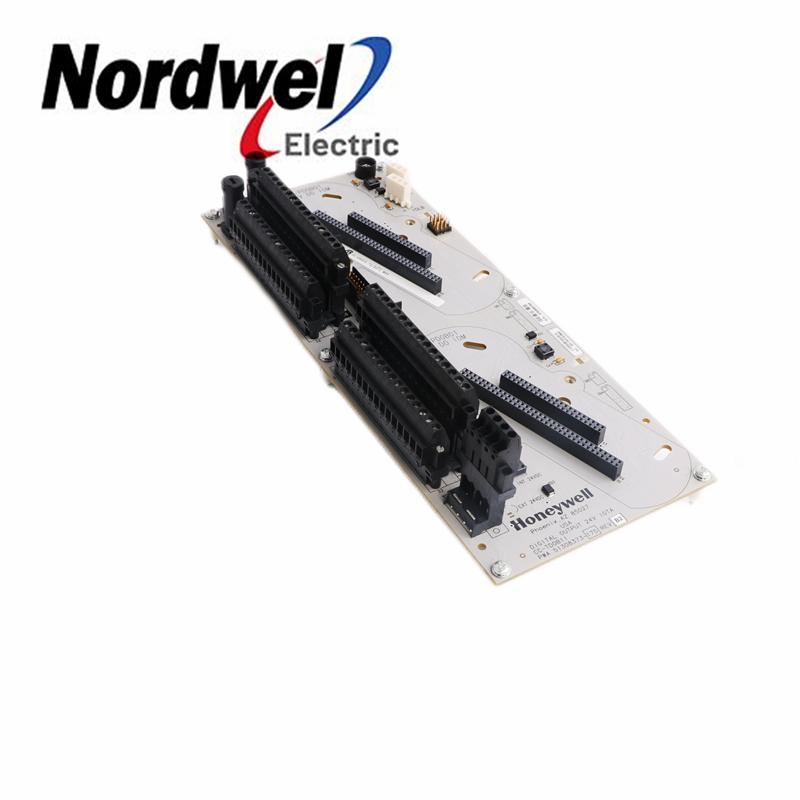

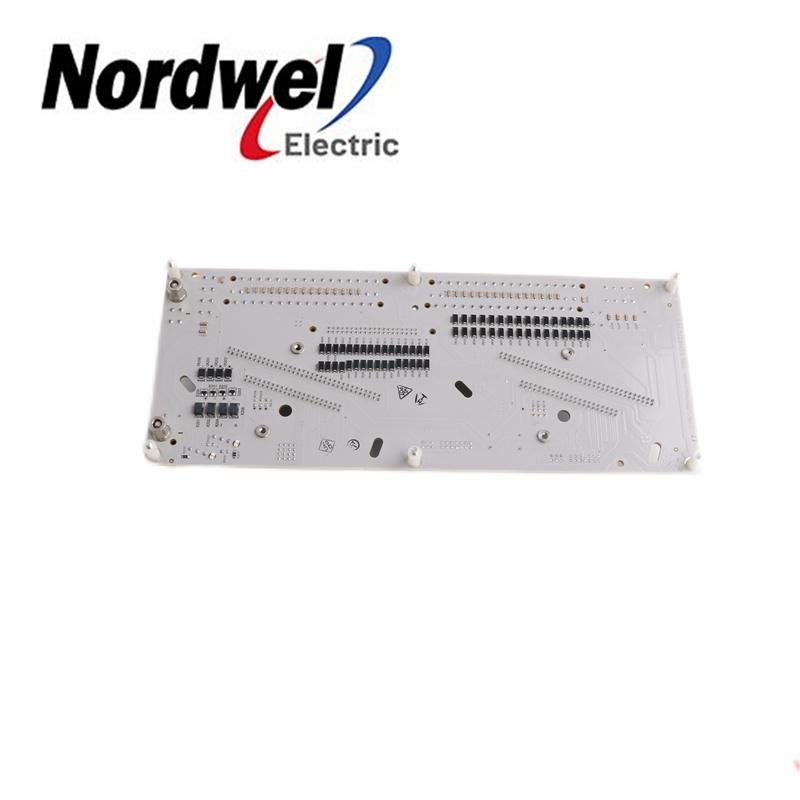

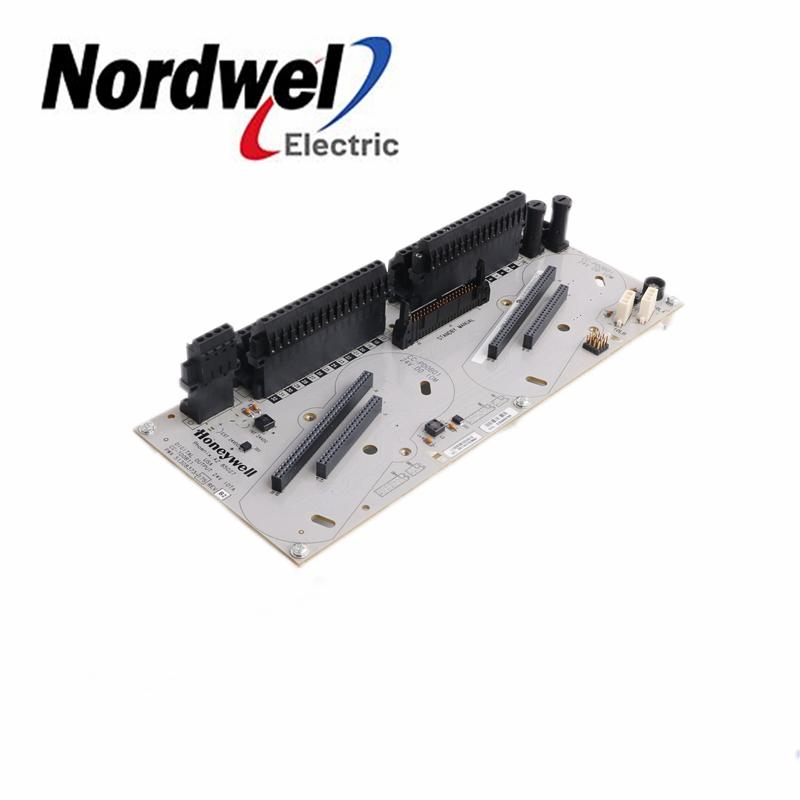

HONEYWELL CC-TDOB11 51308373-175 Digital Output 24V IOTA Model
|
Manufacturer: |
HONEYWELL |
|
Part Number: |
CC-TDOB11 51308373-175 |
|
Description: |
HONEYWELL CC-TDOB11 51308373-175 |
|
Full Description: |
HONEYWELL CC-TDOB11 51308373-175 Digital Output 24V IOTA Model
|
|
Status: |
In stock |
| Warranty | 12 Months |
Field Termination Assembly
• CLAMSHELL style connection on module
• Reduce Cabinet Space
• Field wiring termination from RIGHT side
• 16 channels
• Interposing relay output
• For digital output signals
• One form C contact per channel
• 32 points (Two points per channel)
• With LED indication on coil side of relay
• Honeywell C300 IOTAs
Field wiring and module protection
The Digital Output 24Volt Module provides a unique and highly functional output power protection method.
When a short occurs in the field, the following occurs:
• the output circuits sense the over-current condition and shut down the output
• the shut down of the point places the mode of the point into Manual
• an Over-current Soft Failure is generated
This failure is maintained until the short circuit condition is repaired and the point is again supplying the proper
current.
Only one channel is affected at a time. If multiple channels are affected, they are individually shut down. Any
channels that do not have a short circuit condition are unaffected.
• Thermal protection alarm if short in field of > 0.5A.
