Part Number:
TSXAEY414Weight:
1 kgDimensions:
22.9 x 7.6 x 27.9 cmManufacture Year:
2022Place of Origin:
USACertification:
CO,CQDescription:
Analog Module
Product Description:

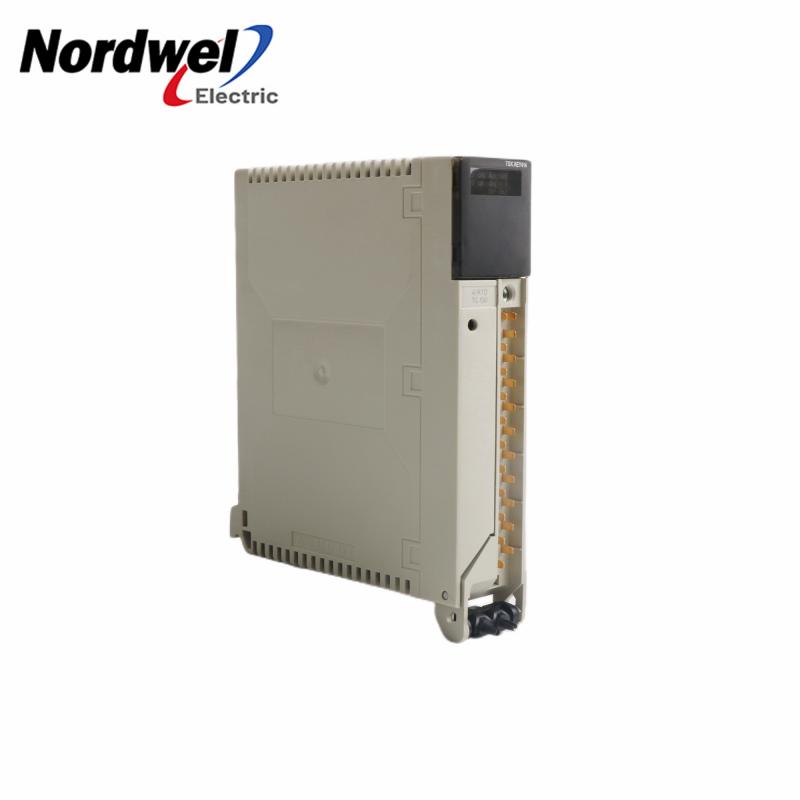

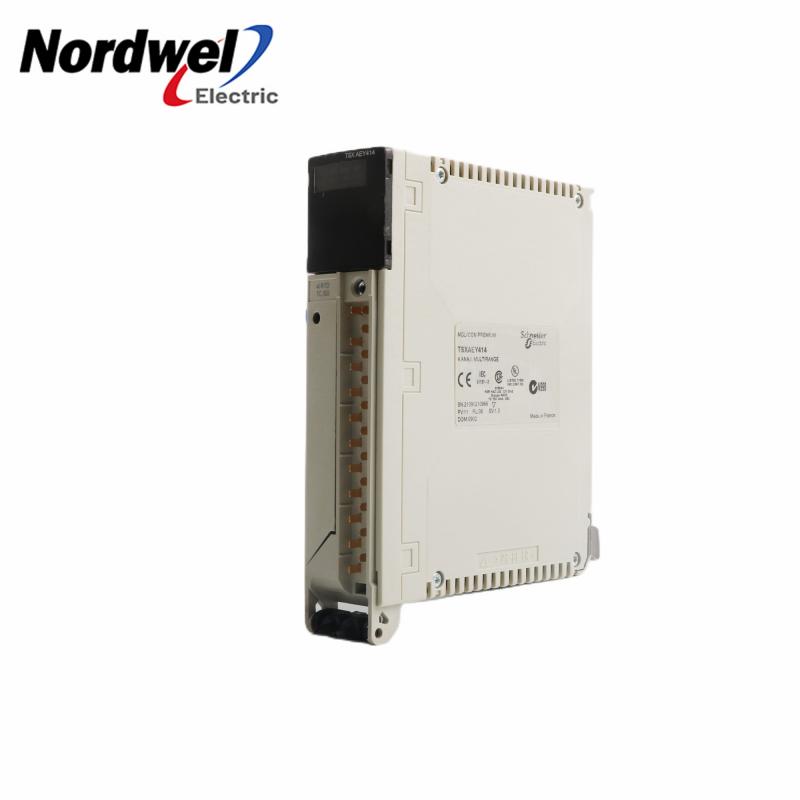

The TSX AEY 414 module is a multi-range acquisition device with four inputs
isolated from each other. This module offers the following ranges for each of its
inputs according to the selection made at configuration :
thermocouple B, E, J, K, L, N, R, S, T, U or electrical range -13..63 mV,
thermowell Pt100, Pt1000, Ni1000 in 2- or 4-wire or ohmic range: 0..400 Ohms
and 0..3850 Ohms,
high level +/- 10 V, 0..10 V, +/- 5 V, 0..5 V (0..20 mA with external shunt), or
1..5 V (4..20 mA with external shunt). It should be noted that the external shunts
are supplied with the product.
Manager John quotes to you
sales3@askplc.com +86 18150117685
+86 18150117685 +86 18150117685
4)Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
