Part Number:
AN-X2-AB-DHRIOWeight:
0.3kgDimensions:
14.5*10.5*3.4cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

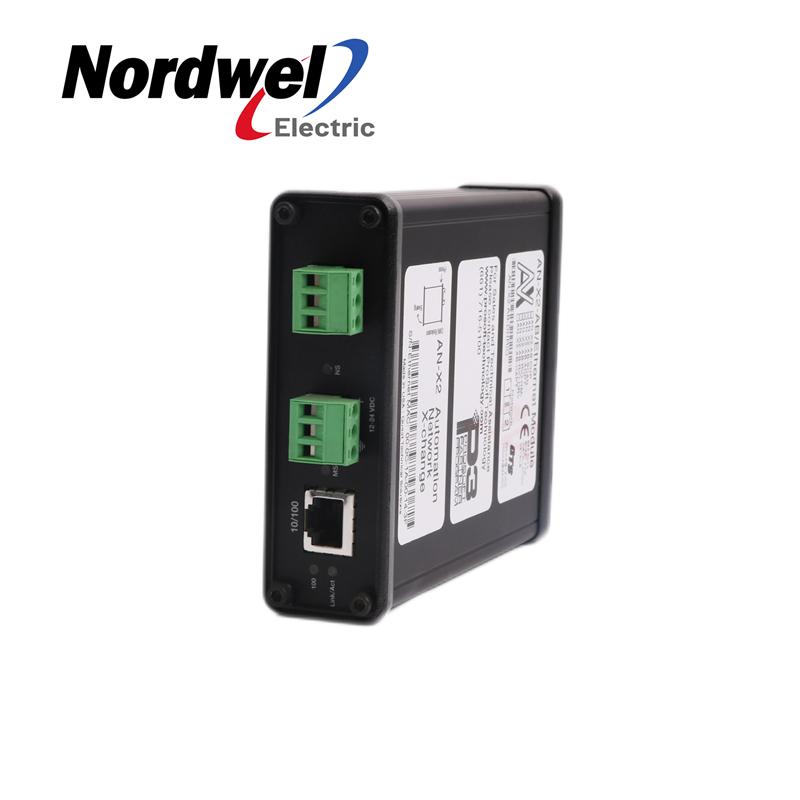

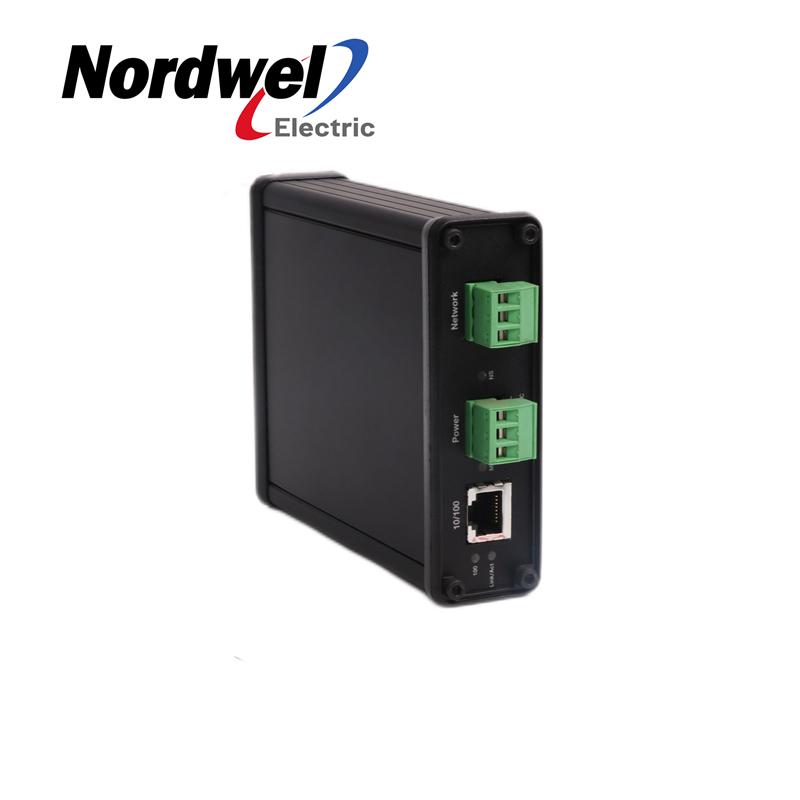

ProSoft AN-X2-AB-DHRIO EtherNet/IP to Remote I/O or DH+ Gateway
Full description:
The AN-X2-AB-DHRIO Gateway is designed to help customers initiate a phased migration approach to replacing
or upgrading legacy Remote I/O PLCs, HMI's, Drives or Flex I/O Adapters. These solutions can be achieved by
selecting the corresponding operation mode during initial configuration. The AN-X2-AB-DHRIO has a built-in web
server that can display diagnostics data, configuration, upload configuration files, and set the operation mode.
Technical Specifications for AN-X2-AB-DHRIO
Product Type: Communication module
Description Network Connector
Part Number: AN-X2-AB-DHRIO
Baud Rate 57.6 to 230.4 kbaud
Supported Protocols Ethernet I/P; Remote I/O (RIO); Data Highway Plus (DH+)
Rack Number 0 to 76 octal
No. of Ports One (1) 10/100 mbps Ethernet I/P; One (1) Remote I/O (RIO) / Data Highway Plus (DH+)
Power Consumption 200 milliamps
Power supply: 24 VDC
Voltage 12 Volts DC
