Part Number:
MVI46-MNETWeight:
0.14kgDimensions:
3.5*13.5*14.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

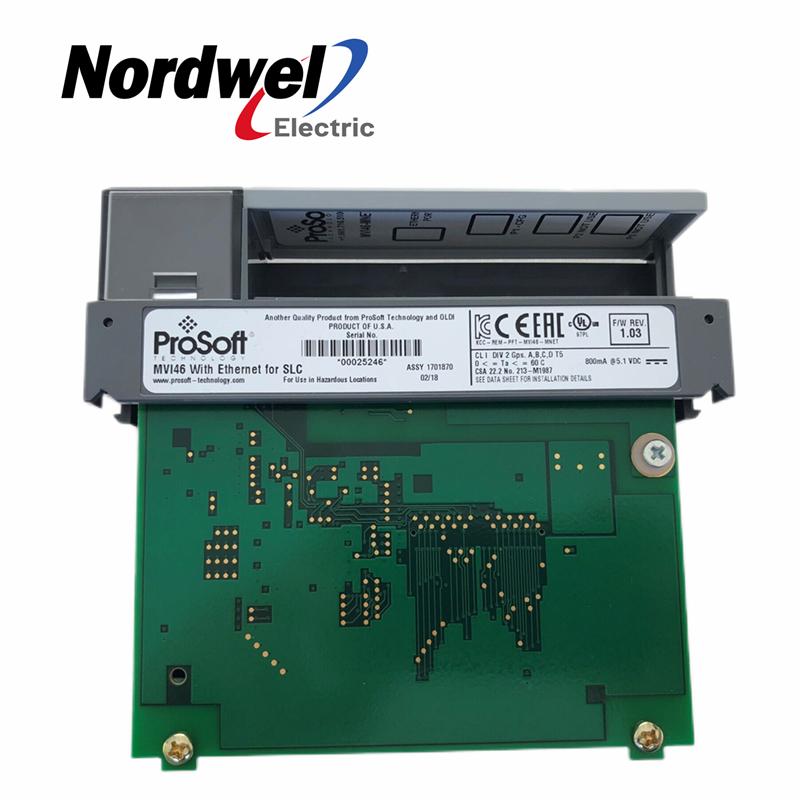

ProSoft MVI46-MNET Modbus TCP/IP Interface Module
Full description:
Description: The MVI46-MNET is a Modbus TCP/IP Client Server Network Interface Module.
This module is developed by ProSoft Technology that is specifically compatible with SLC 500 controllers.
This module is a single slot module with One (1) CFG port and One (1) Ethernet port that supports
MODBUS TCP protocol via 10 / 100 Base-T transmission rate. This module is compatible with SLC 5/02
M0/M1 or newer processors.
Technical Specifications for MVI46-GSC
Backplane Current Load 800 mA @ 5 V DC
Manufacturer ProSoft Technology
Module width Single slot
Compatible rack 1746 chassis
Data size 5000 words
Compatible SLC 500 processor SLC 5/02 M0/M1 capable processors or newer
Communication port One (1) RJ45 interface as application port; One (1) RJ45 interface as configuration port
Ethernet Data Rate 10 / 100 Mbps
Supported protocol MODBUS TCP
MODBUS functionality Server / Client
Manager Steve quotes to you
