Part Number:
MVI56-DFCMWeight:
0.24kgDimensions:
3.5cmX14cmX14.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

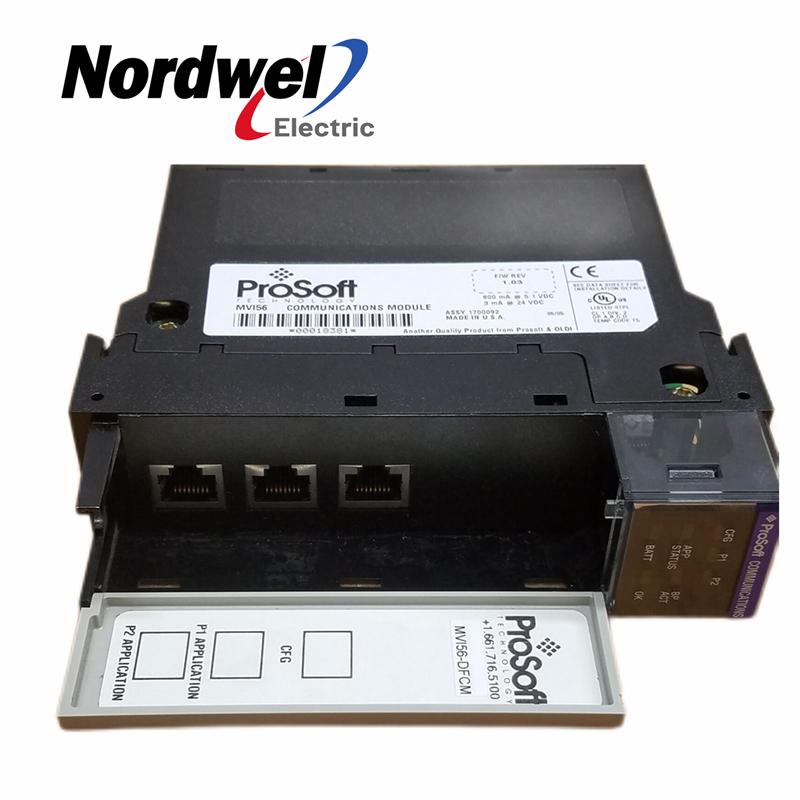

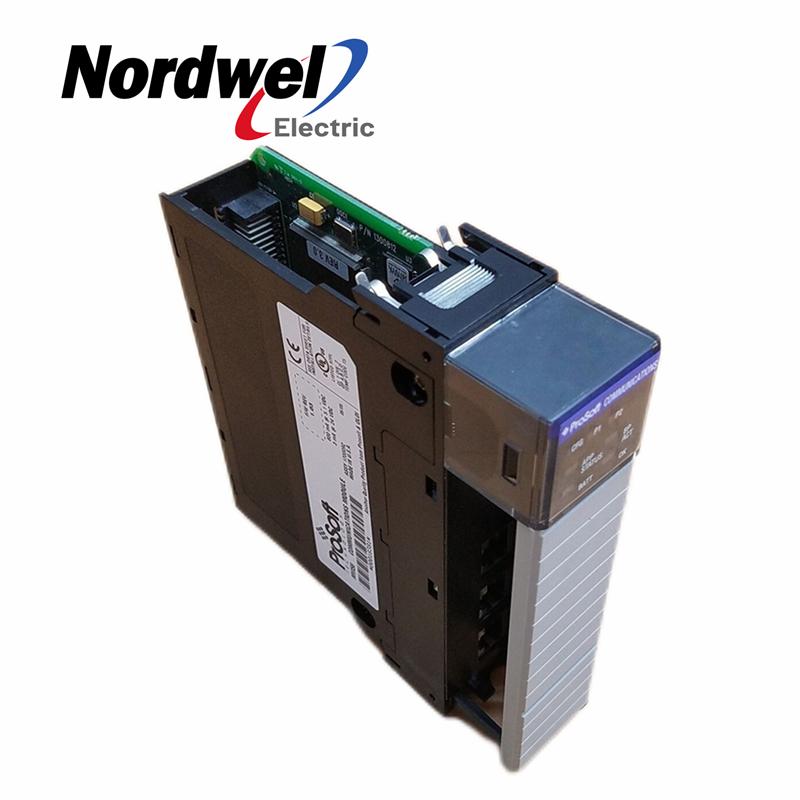

Prosoft MVI56-DFCM DF1 Half/Full Duplex Master/Slave Communication Module
Description:
The MVI56 DF1 Master/Slave Communication Module is a ControlLogix backplane compatible module that allows
ControlLogix I/O compatible processors to interface easily with DF1 protocol compatible devices
and hosts. Devices commonly supporting the protocol include Automation PLCs and power
monitoring equipment, as well as several other third party devices in the marketplace.
Technical Specifications for MVI56-DFCM
Part Number/Catalog No. MVI56-DFCM
Product Type DF1 Master/Slave Network Interface Module
Slot(s) 1
Rack Type Local or Remote
Data Transfer Type Ladder Logic
Baud Rate 110 to 115200 Baud
Read Write Command Length 125 words maximum
Memory Usage User-configurable
Shock 30G Operational
Backplane Current Load 800 mA at 5 Volts DC
