Part Number:
MVI56-HARTWeight:
0.24kgDimensions:
3.5cmX14cmX14.5cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

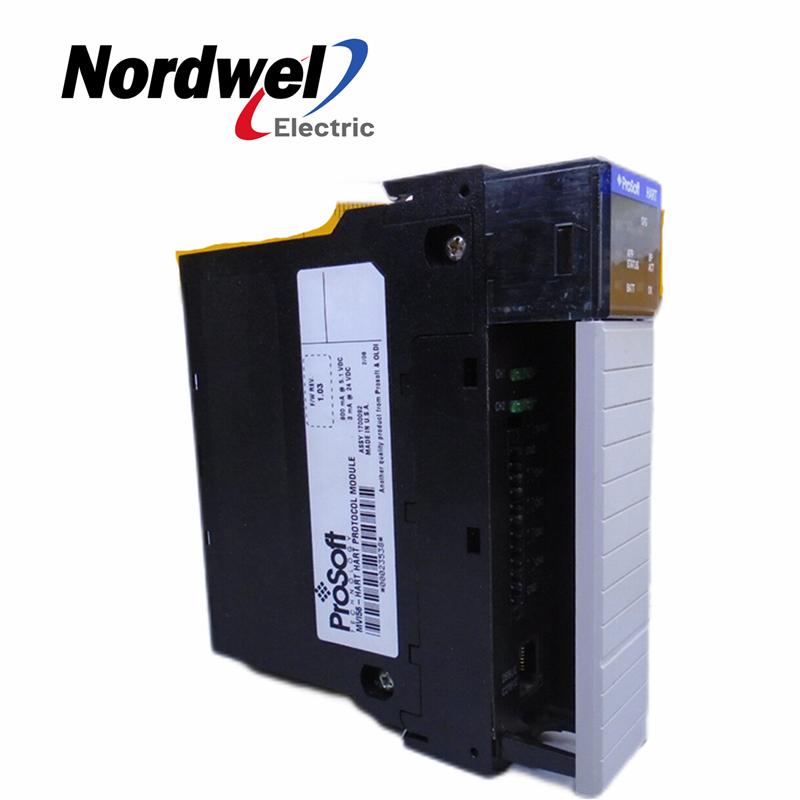

Prosoft MVI56-HART ControlLogix backplane compatible module
Description:
The MVI56 HART Multidrop Master
Communication Module is a ControlLogix backplane compatible module that allows ControlLogix processors
to interface easily with HART compatible devices. Devices commonly supporting the protocol include
pressure, temperature, flow transmitters, as well as other similar instruments commonly found in the
process (and other) industry.
HART® is a registered trademark of the HART Communication Foundation
Technical Specifications for MVI56-DFCM
Part Number/Catalog No. MVI56-HART
Product Type HART Master Multi-drop Network Interface Module
Slot(s) 1
Rack Type Local or Remote
Data Transfer Type Ladder Logic
Universal and Common Practice Commands per Port 99
Devices per Port 15 maximum
Ports 4 Independent HART Master
Shock 30g Operational
Backplane Current Load 800 mA at 5 Volts DC
