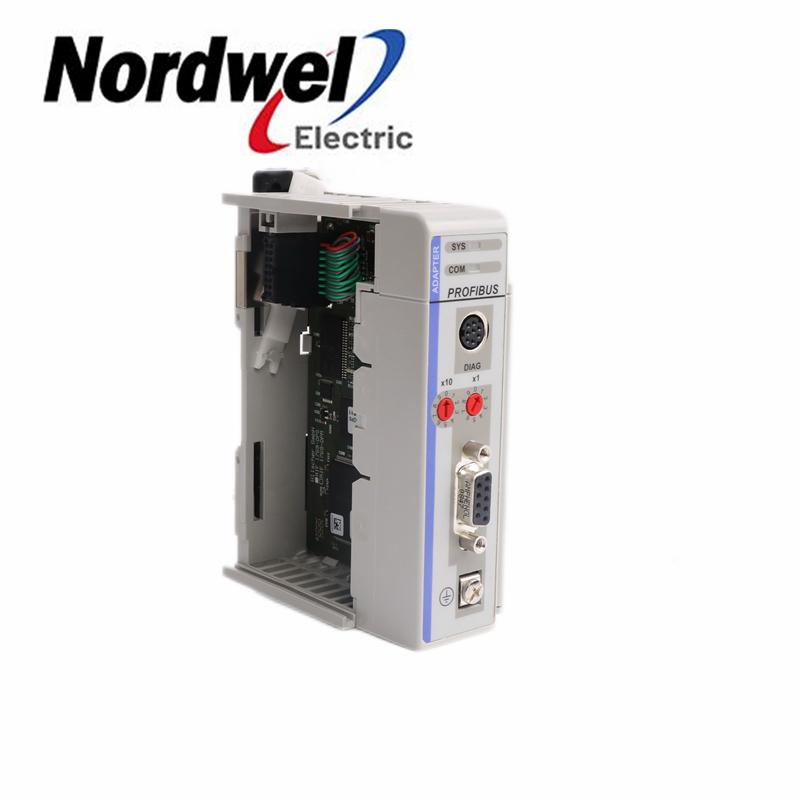

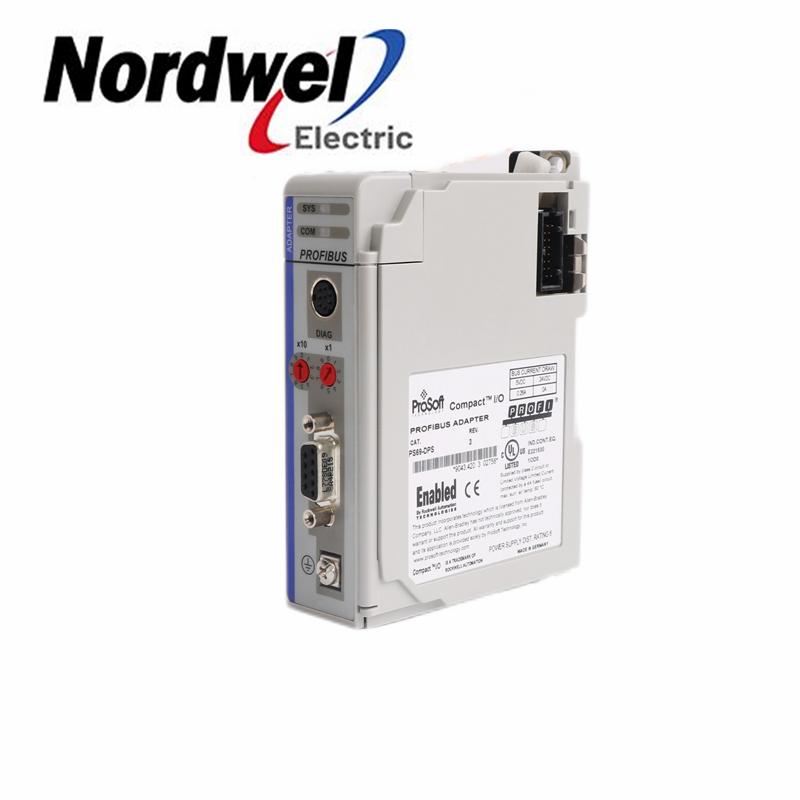

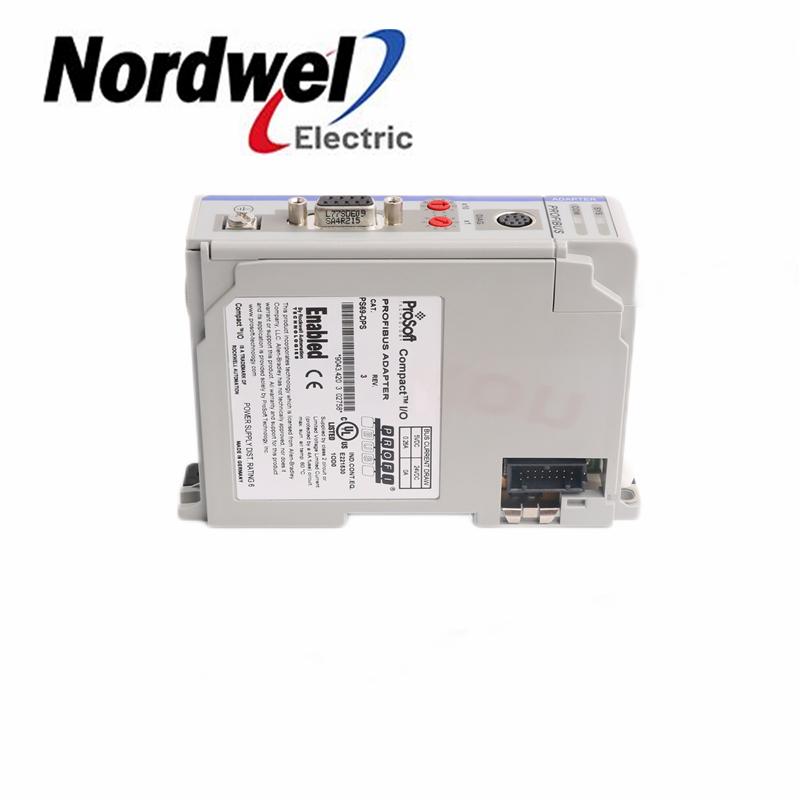

Prosoft | PS69-DPS | PROFIBUS DP Slave Communication Module


  • Part Number:

    PS69-DPS
  • Weight:

    0.16kg
  • Dimensions:

    3.8cmX9cmX13cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    Prosoft PS69-DPS PROFIBUS DP Slave Communication Module

Full description:

The PS69-DPS module expands the functionality of Automation’s CompactLogix™ to include

PROFIBUS DP V0/V1. The PS69-DPS is a more costeffective  option offering more features than the MVI69-

PDPS, and supports both I/O control and messaging. Explicit ladder logic CIP message blocks provide slave

status diagnostic data and acyclic messaging.


Part of Hardware Specifications

Processor                                EC1-160P with integrated ASPC2

PROFIBUS Interface                 RS-485, max. 12 Mbps, potential free, according EN 50170

Diagnostic Interface                 RS-232, PS/2 Mini DIN female connector, 9600 Baud, non isolated

Power Supply                          +5 V ±5 % / 260 mA

Max. Distance Rating                max. 6 modules to the power supply module

Dimensions                             Standard 1769 Single-slot module


Manager Steve quotes to you

 cn@mooreplc.com            +8618005028963


  +86-18005028963             +86-18005028963

  1. Fast delivery:
  2. Various payment:
  3. Long warranty: we offer original new with 1 year warrenty
  4. Large inventory: Our warehouse is capable of holding up to 60,000 pallet spare parts.
