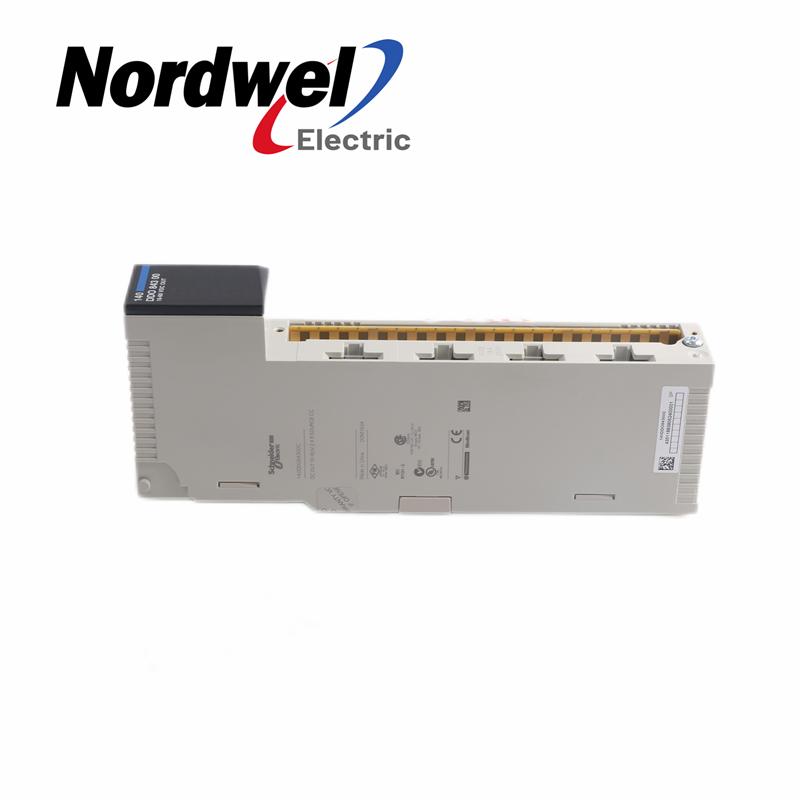

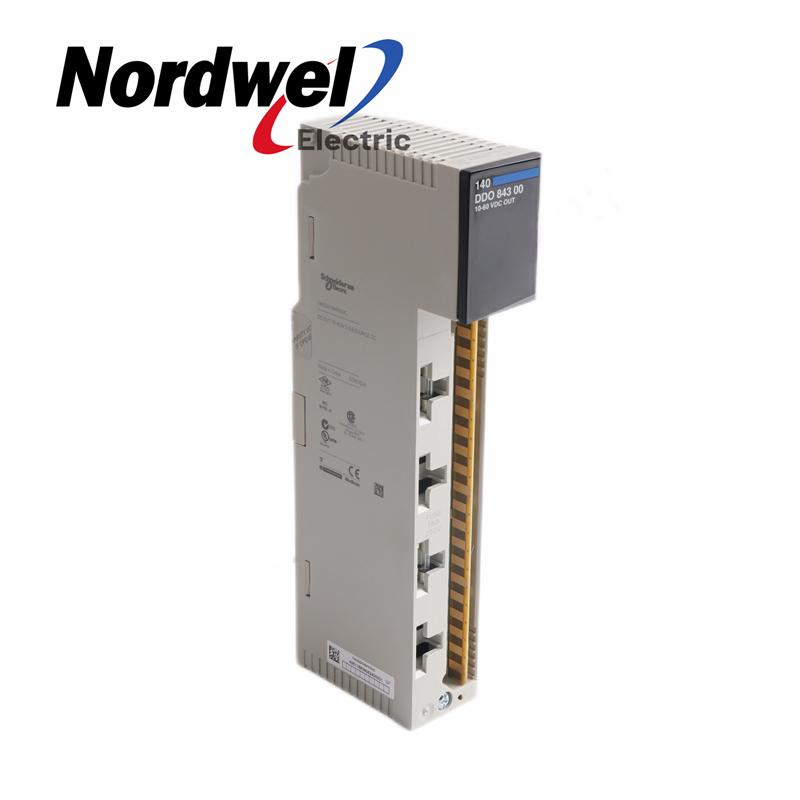

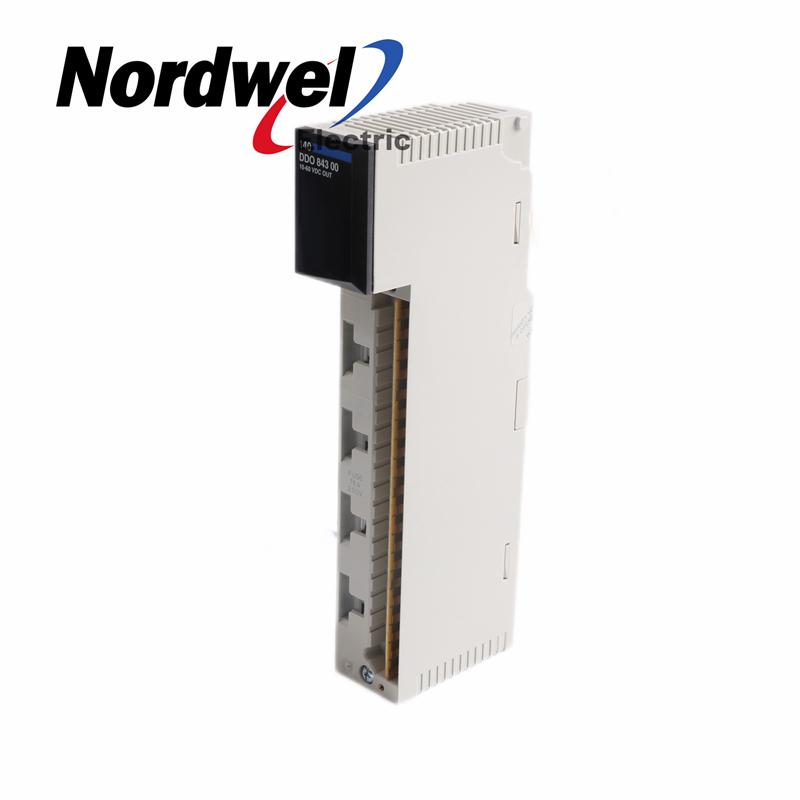

Schneider | 140DDO84300C | Discrete Output Module


  • Part Number:

    140DDO84300C
  • Weight:

    0.5kg
  • Dimensions:

    31cmX16.5cmX5cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    Schneider 140DDO84300C Discrete Output Module

Additional Information

discrete output module Modicon Quantum - 16 Outputs 10-60 VDC


Specifications

Number of Output Points                     16 in two 8 point groups

LEDs                                                    Active

                                                             1 ... 16 (Green) - Indicates point status

Required Addressing                            1 word out

Voltage

Operating                                              10.2 ... 72 Vdc

Absolute Maximum                              72 Vdc (continuous)

ON State Drop / Point                          1 V max @ 2 A

Maximum Load Current

Each Point                                            2 A

Each Group                                           6 A

Per Module                                           12 A

Off State Leakage / Point                      1 mA @ 60 Vdc max

Surge Current Maximum

Each Point                                             7.5 A @ 50 ms duration (no more than 20 per minute)
