Part Number:
6AV6545-0CC10-0AX0Weight:
3.2 KGDimensions:
27.9 cm x 7.6 cm x 35.6 cmManufacture Year:
2022Place of Origin:
GermanyCertification:
CO,CQDescription:

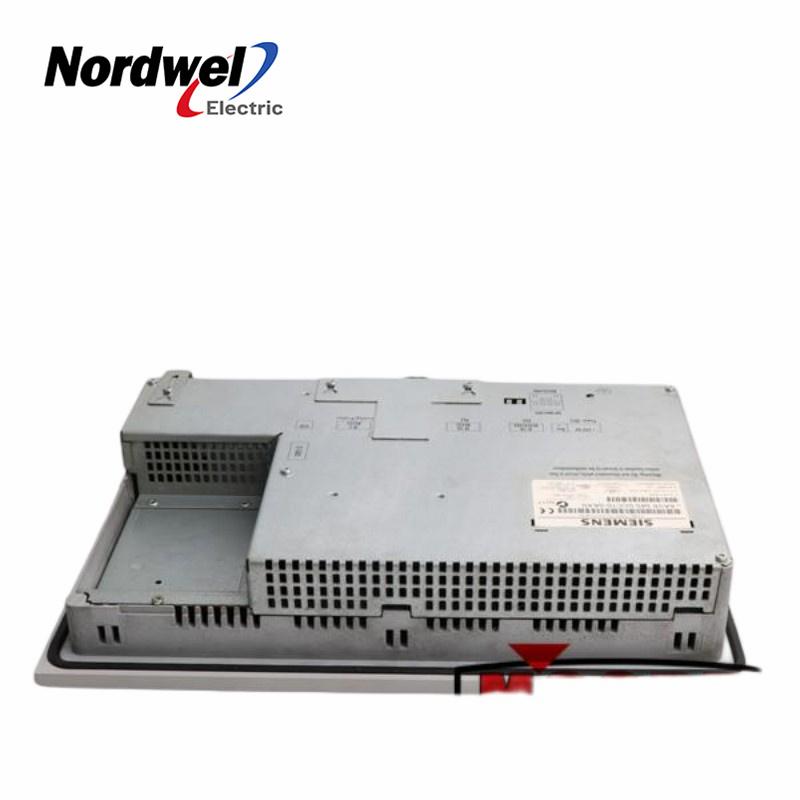

Touch Panel
Overview:
Supply voltage 24 V DC
permissible range +20.4 V to +28.8 V DC
Type of voltage DC
Rated current 0.9 A
Power 15 W
UPS connectable (serial) Yes
Backup battery
Backup battery optional 3.6 V
minimum backup duration 3 a
Memory
Type Flash / RAM
Usable memory for user data 2048 KB usable memory for user data
Time of day
Clock
Type Hardware clock, battery backup, synchronizable
Configuration
Configuration tool ProTool Version 6 SP 3 or higher, or WinCC flexible
Standard Version 2004 or higher (to be ordered
separately)
