Part Number:
RWF40.000A97Weight:
0.1kgDimensions:
9.7*9.3*6.1cmManufacture Year:
2021Place of Origin:
GERMANYCertification:
CO,CQDescription:

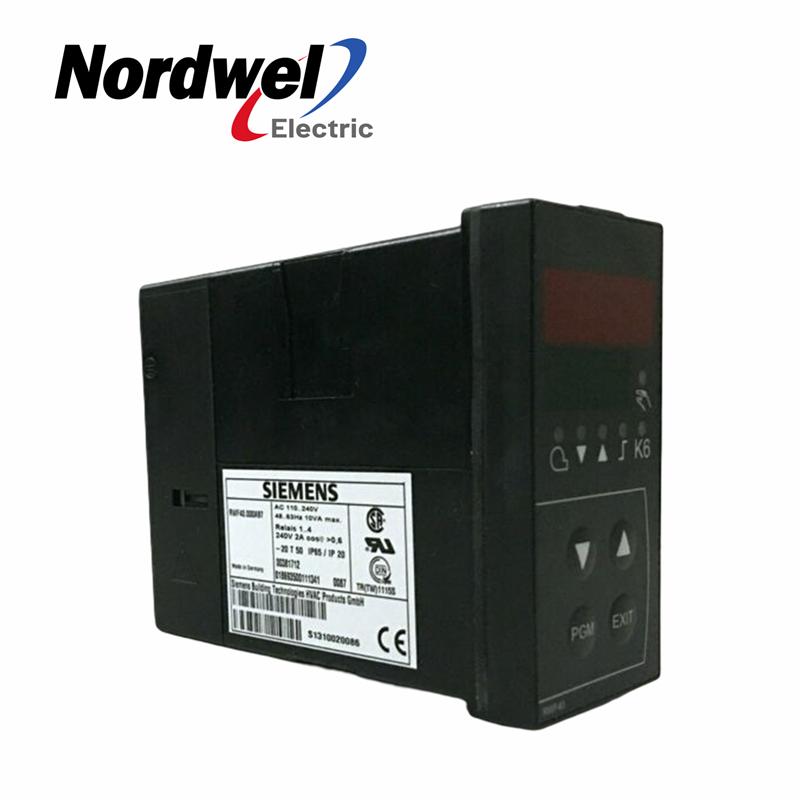

Siemens RWF40.000A97 compact universal digital boiler temperature / pressure controller
Full Description:
The RWF40... is a compact universal digital boiler temperature / pressure
controller providing functions designed specifically for the control of heat generating plant.
Mechanical design
The RWF40... is supplied complete with housing for flush panel mounting.
The controller is matched to the controlled variable and the required setpoint range by
making parameter settings.
The control parameters can be set and optimized while the burner is running.

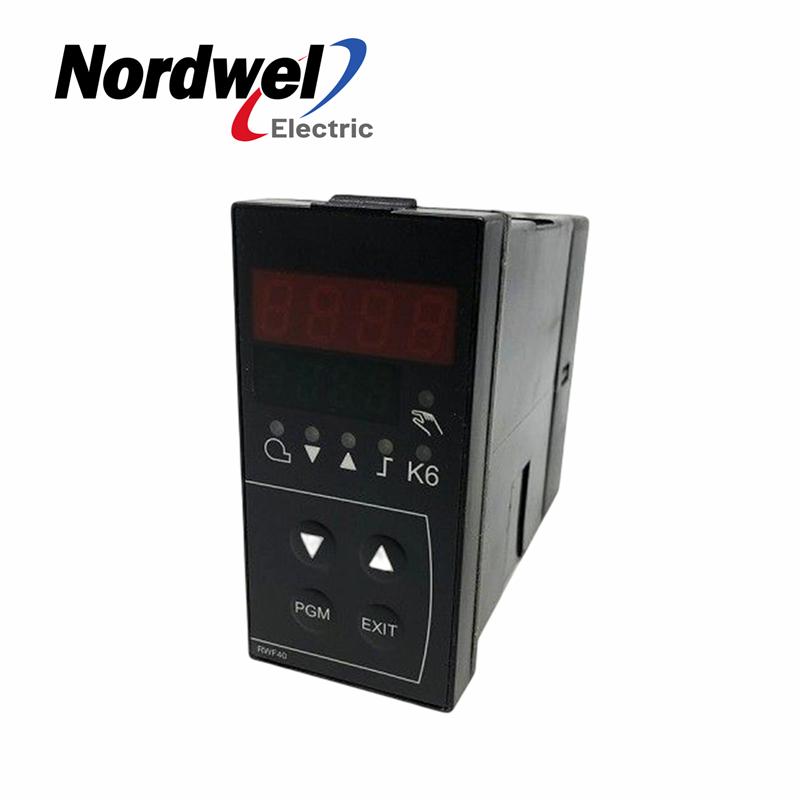

All settings are made with four buttons located on the unit front and are directly
displayed.
LEDs on the front indicate the following operational statuses:
– Control ON / OFF
– Positioning pulses OPEN or CLOSE for driving the burner's air damper when using
modulating burner control, or stage I / stage II when using two-stage burner control
– Position of the configurable contact «K6»
– Manual control ON / OFF
– «Two-stage» operating mode
During operation, the digital displays above the LEDs show the setpoint (green), the
actual value (red) and – when making parameter settings - the relevant parameters.
