Part Number:
1336-BDB-SP34D 77101-169-64Weight:
1.22kgDimensions:
39.3 cm x 24.4 cm x 4 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

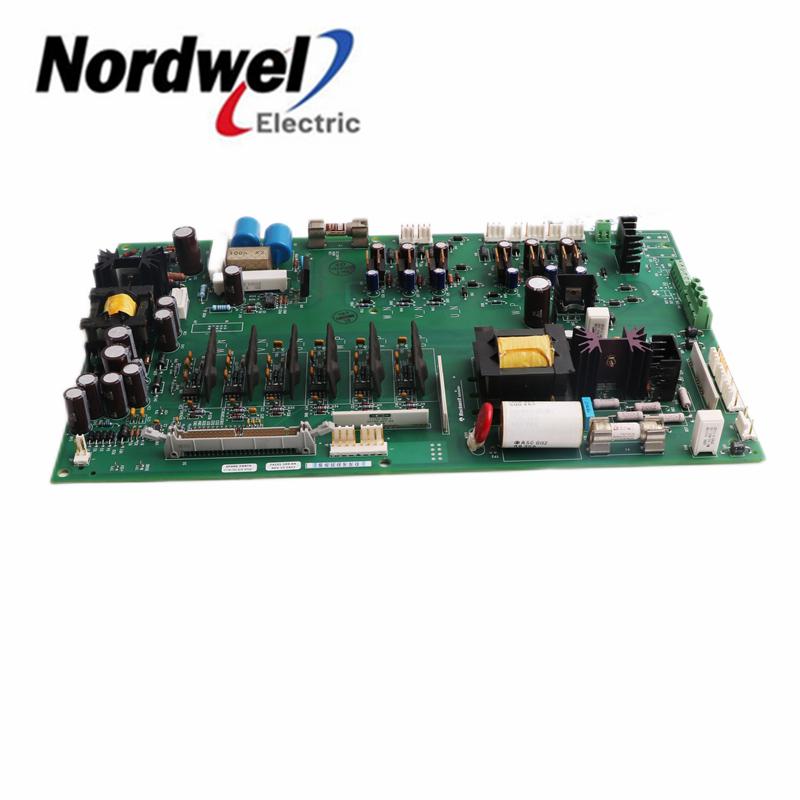

1336-BDB-SP34D 77101-169-64 Gate Driver PC Board
◆ The 1336-BDB-SP34D PCB Gate Drive Board is a PCB gate
driver board for the 1336 Plus, Force, Impact, and Plus II Drives
family with 575V drive operating voltage and drive power rating of 125HP, which
is located under the drive’s main control board, and is an integral component
of the Drive Circuit Board Platform.
◆ The 1336-BDB-SP34D is designed to amplify low current input to high current
drive input for a high-power transistor (IGBT), and it has a board operating voltage
rating of 575V with a 125HP power rating.
◆ The 1336-BDB-SP34D is an integral component of the drive’s circuit board platform,
and it can be installed safely via the following steps (1) Attach the Gate Driver Board
to the Main Control Board Mounting Plate, (2) Turn the 8 supplied fastening screws in
a ¼ clockwise direction to fastening the Gate Driver Board to the Main Control Board
Mounting Plate.
