Payment:
T/TPart Number:
1394-SJT22-C-RLWeight:
2kgDimensions:
40x20x10cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:

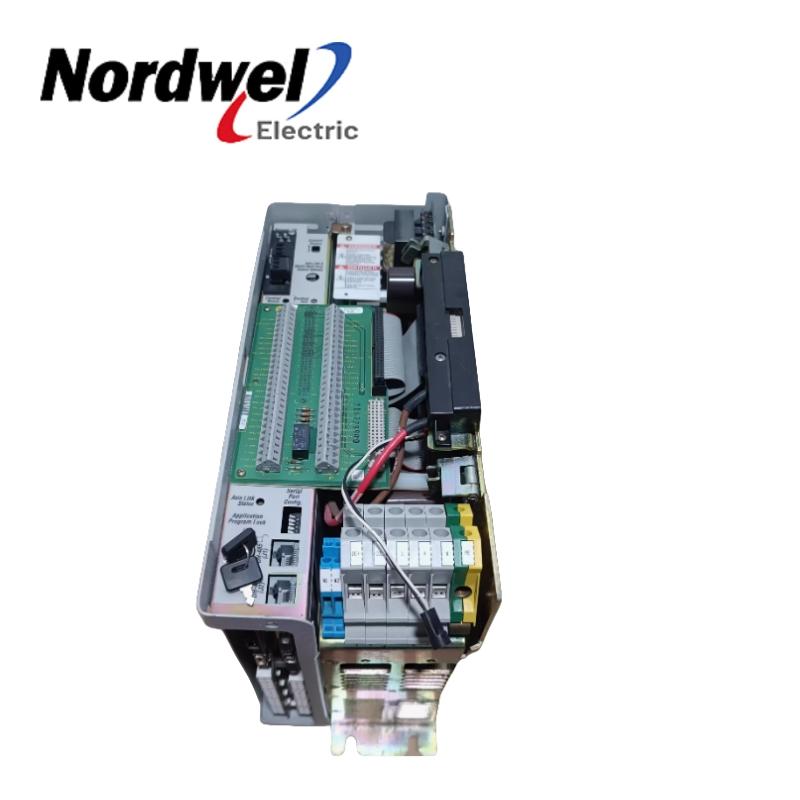

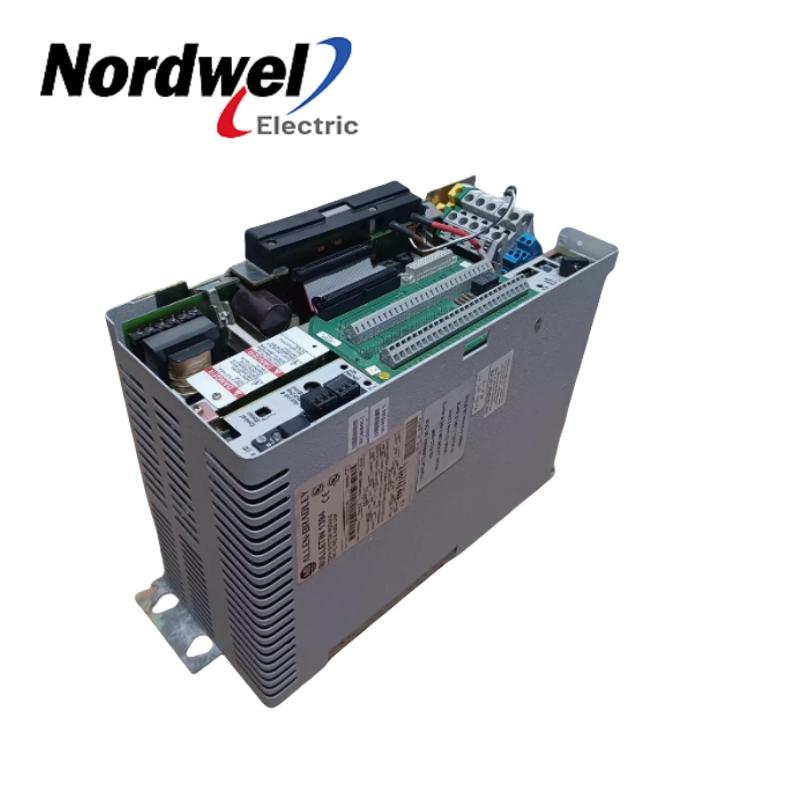

SERVO CONTROL SYSTEM MODULETechnical Parameters
Part number: 1394-SJT22-C-RL
Country of Origin: USA.
Condition: Brand new and Original
Input voltage: Typically 220V AC (may vary depending on specific configuration)Type: Servo control system module
Power supply voltage: 380-460V AC, three-phase
Rated power: 22 kW (30 HP)
Output current: 27A
Frequency range: 50/60 Hz
Control mode: Digital servo control
Communication interface: SERCOS interface
Cooling method: Forced air cooling
Technical parameters
Power capacity: 22 kW
Input current: 32A (at rated load)
Overload capacity: 150% for 60 seconds
Control accuracy: High-precision position, speed and torque control
Speed range: Up to 5000 RPM
Ambient temperature range: 0°C to 50°C (32°F to 122°F)
Storage temperature: -40°C to 70°C
Relative humidity: 5% to 95%, no condensation
Protection level: IP20
Enclosure protection level: IP20, suitable for use in control cabinets
Feature
High-performance servo control: supports precise speed, position and torque control, suitable for motion control applications with high dynamic response.
Multi-axis control: The module is capable of controlling multiple servo motors and is suitable for complex motion control systems.
SERCOS interface: Adopts SERCOS interface technology, provides high-speed, real-time communication and synchronous control, and is easy to integrate into modern automation systems.
Overload protection: Provides overcurrent, overvoltage, overload and other protection functions to ensure safe and stable operation of the system.
Modular design: The control system is designed to be modular, easy to integrate with other automation equipment, and easy to expand.
Application
Industrial automation equipment: used for industrial equipment such as CNC machine tools, packaging machinery, and automated production lines that require high-precision control.
Robot control system: Suitable for servo control in industrial robots and automated assembly systems.
Printing and paper processing: Provides high-speed and precise control in printing machinery and paper processing equipment.
Metalworking industry: For example, stamping machines, pipe bending machines, etc., applications that require fast response and precise control.
