Payment:
T/TPart Number:
1404-M405A-RIOWeight:
2kgDimensions:
50x50x50cmManufacture Year:
The latest yearPlace of Origin:
USACertification:
COODescription:
Circuit BoardTechnical Parameters

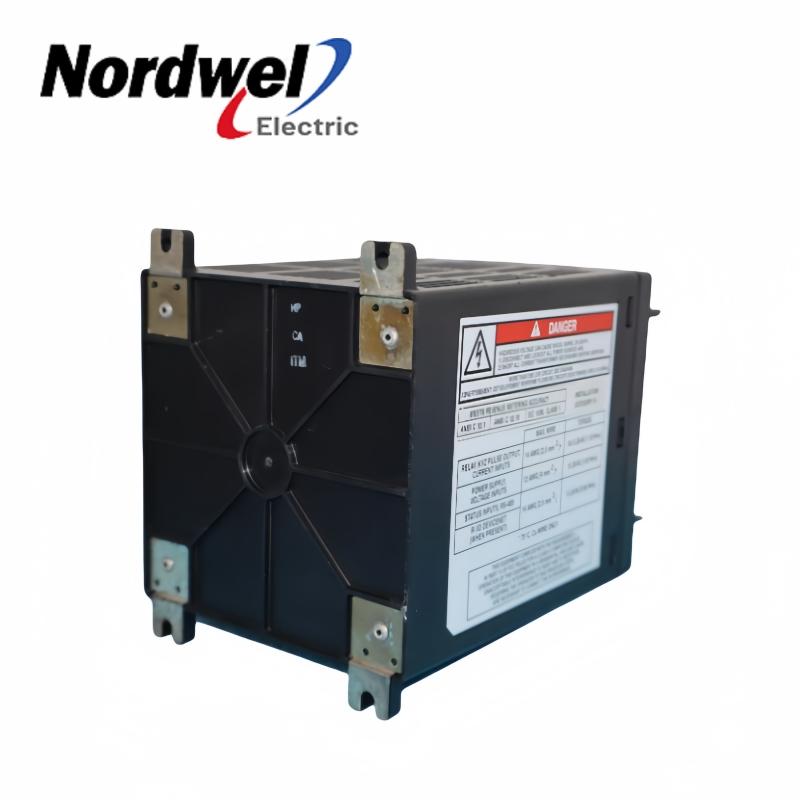

Part number: 1404-M405A-RIO
Country of Origin: USA.
Condition: Brand new and Original
Input voltage: Typically 220V AC (may vary depending on specific configuration)Type: Powermonitor 3000 main module
Power supply voltage: 24 V DC
Communication interface: Remote I/O (RIO) network interface
Voltage measurement range: 0-600V AC (phase-to-phase) / 0-347V AC (phase-to-ground)
Current measurement range: 0-5A RMS
Power factor measurement range: 0.00-1.00 leading or lagging
Frequency range: 45-65 Hz
Mounting method: DIN rail or panel mounting
Technical parameters
Accuracy level: Power and energy measurement accuracy reaches ±0.2%
Phase measurement: Supports three-phase three-wire, three-phase four-wire and single-phase measurement
Sampling frequency: 128 samples/cycle
Power monitoring: Provides real-time monitoring of active power, reactive power and apparent power
Energy metering: supports cumulative metering of active, reactive and apparent energy
Event recording: records power quality events (such as voltage sag, surge, overvoltage, harmonic distortion, etc.)
Communication protocol: supports Remote I/O network for integration with PLC and other control systems
Ambient temperature: 0°C to 60°C
Enclosure protection level: IP20, suitable for use in control cabinets
Feature
High-precision measurement: provides high-precision measurement of voltage, current, power and energy, suitable for power monitoring in critical applications.
Extensive communication functions: communicates through Remote I/O interface, which is convenient for integration into existing automation and control systems.
Power quality monitoring: It has the function of recording and reporting power quality events such as voltage anomalies and harmonic distortion, helping users analyze and improve power quality.
Event recording and alarm: provides event triggering and alarm functions to help quickly respond to abnormal conditions in electrical systems.
Programmable parameter setting: supports programming and configuration of multiple measurement parameters, and flexibly adapts to different monitoring needs.
FAQ
Q1: How does Powermonitor 3000 integrate with PLC?
A1: The 1404-M405A-RIO module communicates with Allen Bradley PLC through the Remote I/O interface, and can use the Remote I/O network protocol for data transmission and integration.
Q2: What kind of power measurement does the module support?
A2: The module supports real-time monitoring of multiple power parameters such as voltage, current, power, energy, frequency, power factor, etc., and is applicable to three-phase and single-phase systems.
Q3: How to view power quality event records?
A3: Power quality events can be read through the corresponding monitoring program in the monitoring software or PLC system to help users understand transient events or abnormal conditions in the power system.
Q4: Does it support remote monitoring?
A4: Yes, through the Remote I/O interface, the module can communicate remotely with the control system to provide power monitoring and diagnostic functions.
Q5: What power quality parameters can this module monitor?
A5: The module supports monitoring power quality parameters such as voltage transients, harmonic distortion, voltage sags and surges, and is suitable for power quality analysis and diagnosis.
