Part Number:
1771-P4RWeight:
0.9kgDimensions:
27.9 cm x 2.5 cm x 17.8 cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:

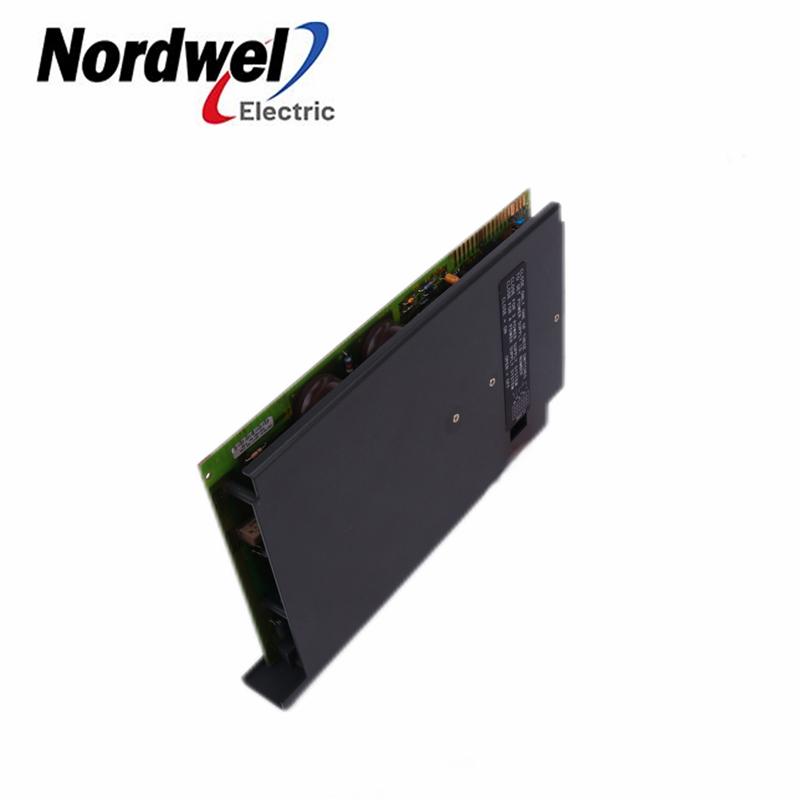

1771-P4R PLC-5 Redundant Power Supply, 1 Slot, 120V AC, 8A
Technical Specifications for 1771-P4R
Manufacturer Automation
Input Voltage Range 97-132 VAC
Module Type Redundant Power Supply
Part Number/Catalog No. 1771-P4R
Input voltage frequency: 47-63 Hz
Output voltage: 5 VDC
Output current: 8:00 AM
Maximum output current at 60o C using N+1 Redundancy: 8A (2 unit system); 14A (3 unit system);
20A (4 unit system)
Alarm Relay Rating: 250 VAC
Wiring Block, AC power: A-B part number 941274-05 (Wago PN 231-205/000-008)
Wiring Block, Relay: A-B part number 941274-03 (Wago PN 231-203/000-008)
Operating temperature: 32 to 131oF
Storage Temperature: -40 to 185oF
Relative Humidity: 5-95 %
Nom Input Voltage 120 Volts AC
Max Real Input Power 59 Watts
Max Apparent Input Power 92 VA
Max Xformer Load 148 VA
User Output Current N/A
Backplane Output Current 8 Amperes (at 5 Volts DC)
Frequency 47-63 Hertz
Fuse 1.5 Amperes, 250 Volts, slow-blow
Cabling Redundancy Cable for P4R (Included)
Paralleled N/A
Location 1771 Chassis, 1 Slot
Dimensions 1 Chassis Slot
