|194R-J400-1753| Disconnect Switch


  • Part Number:

    194R-J400-1753
  • Weight:

    0.1 kg
  • Dimensions:

    10.2 cm x 5.1 cm x 7.6 cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

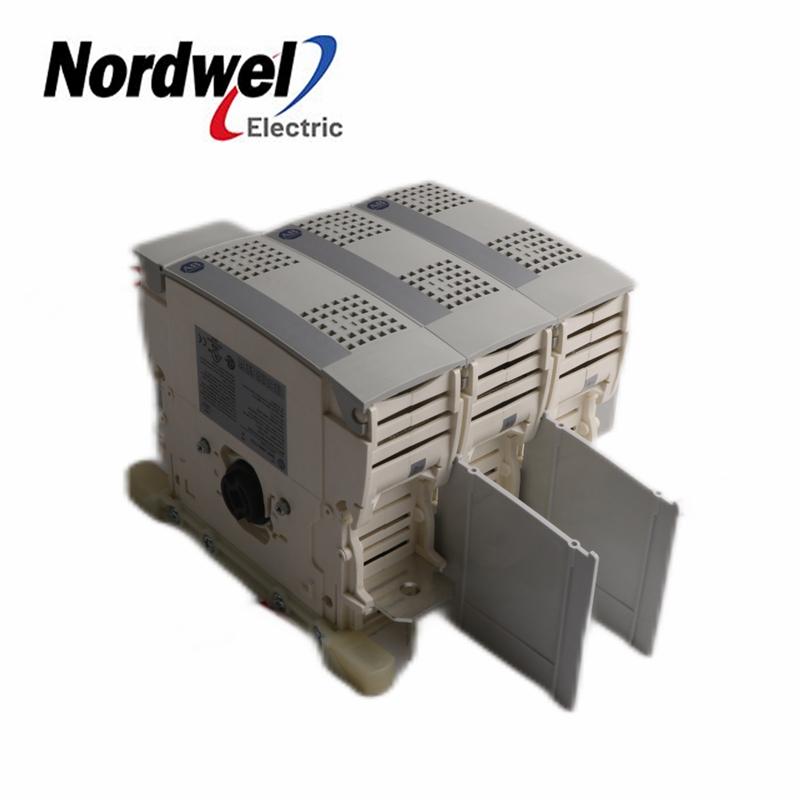

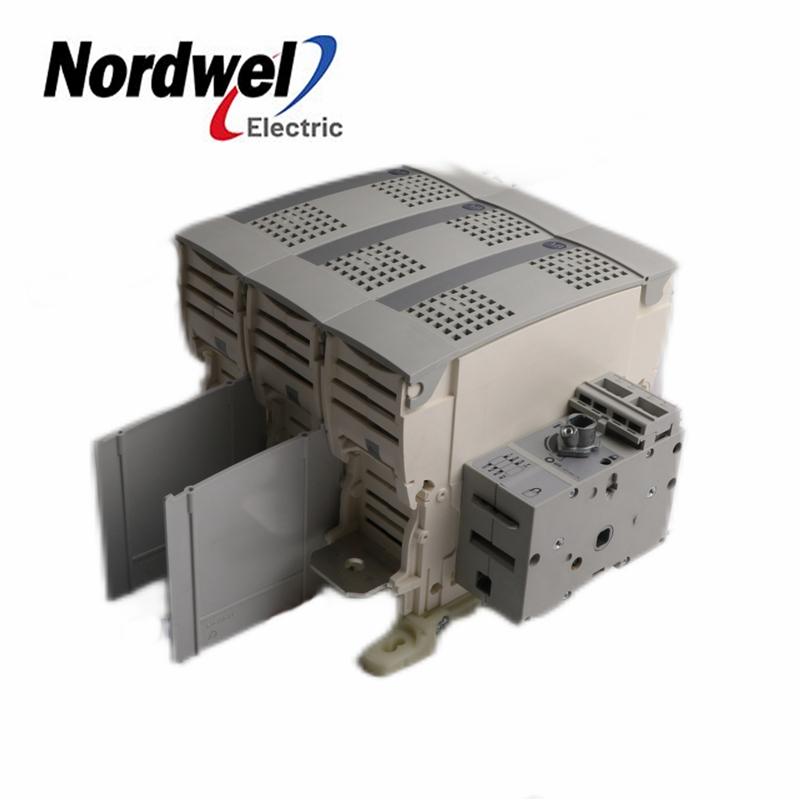

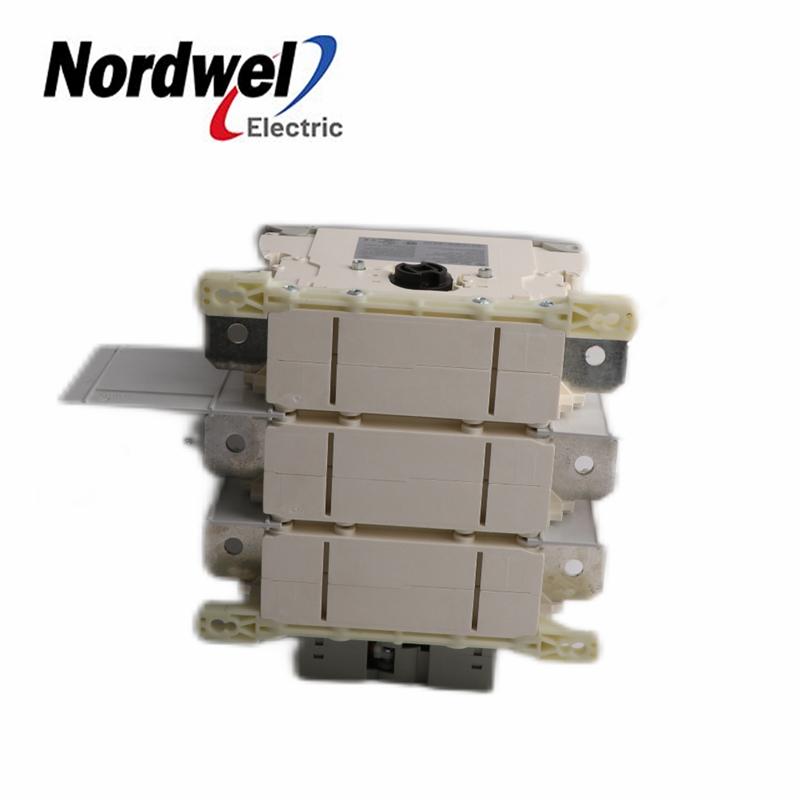

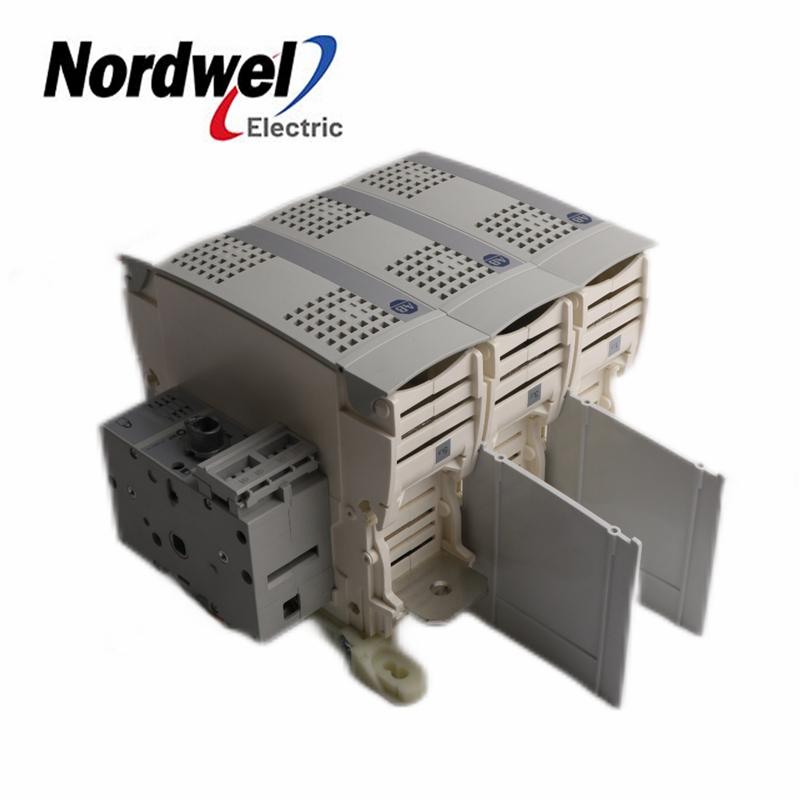

    194R-J400-1753 IEC Disconnect Rotary Switch, J-Fuse, 400A

The 194R-J400-1753 switch is an 400 Amps disconnect switch. The disconnect switch features a

 current rating of 400 Amps and the module comes with the panel mounting option. The 194R-J400-1753 switch is

 a 3-pole disconnect switch and the module comes with a 600 Volts AC voltage rating and a 250 Volts DC alternative

 voltage rating. The fused disconnect switch has a rated voltage of 690 Volts AC while the short circuit rating is 200

 kiloamps. The ambient operating temperature is rated at -20 to 60 degrees Celsius while the ambient storage

 temperature range is -40 to 65 degrees Celsius. The protection class per the IEC 529 standards is switch bodies

 with the IP 20 rating and fuse carriers with the IP 30 rating. The 194R-J400-1753 switch supports up to 6 auxiliary

 contacts.

Technical Specifications for 194R-J400-1753

Brand                                                        / Automation

Series                                                       194R Switches

Part Number                                             194R-J400-1753

Ambient Operating Temperature             -20 to 60 degrees Celsius

Ambient Storage Temperature                -40 to 65 degrees Celsius

Interrupting Capacity                                200 kA

Amps                                                        400 A

Number of Poles                                      3
