Part Number:
IS200ECTBG1ABBWeight:
1.12kgDimensions:
33.1cmX18cmX5.2cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:
General Electric/GE Fanuc IS200ECTBG1ABB excitation contact inputs and outputs circuit board
|
Manufacturer: |
General Electric |
|
Part Number: |
IS200ECTBG1ABB |
|
Series: |
Mark VI |
|
Full Description: |
General Electric IS200ECTBG1ABB ECTB circuit board
|
|
Status: |
In stock |
| Warranty | 12 Months |
The IS200ECTBG1ABB is a board component within the Mark VI Speedtronic system from General Electric.
This system was designed and distributed by GE for the management of gas and steam industrial turbine systems.
The IS200ECTBG1ABB functions to support excitation contact inputs and outputs. There are two basic versions
of the ECTB board: the G1 board, which is used only in TMR systems, and the G2 board, which is used in simplex
systems. Both boards are designed with two trip contact outputs for a customer lockout feature, as well as four
Form C (general purpose) relay contact outputs. These contacts are typically controlled by the connected EMIO
circuit board. The board also has a 52G and 86 G contact input that are monitored and powered by the ECTB
board, along with four additional contacts. Power for the IS200ECTBG1ABB board is received from M1 and M2
power supplies.

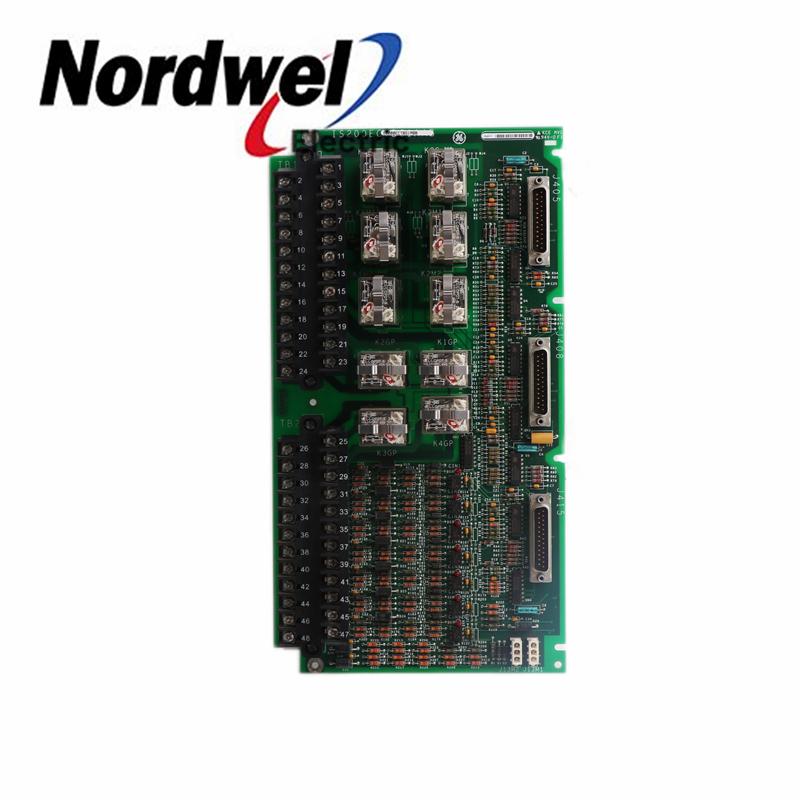

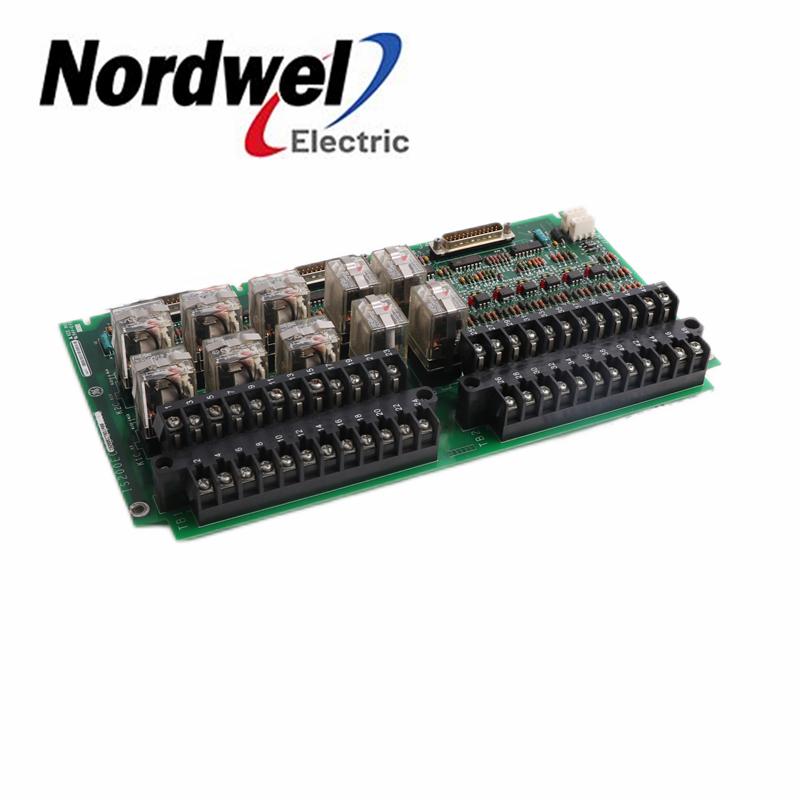

Other board components on the IS200ECTBG1ABB include three d-shell connectors, multiple integrated circuits,
resistors, capacitors, and diodes. The board is marked with reference designators to allow for easy identification
of components. The board also carries the GE logo, a bar code, and several additional codes.
