Part Number:
IS215GFOIH1A IS215GFOIH1AB IS200GFOIH1AWeight:
0.34kgDimensions:
4cmX18.6cmX26.1cmManufacture Year:
2021Place of Origin:
USACertification:
CO,CQDescription:
General Electric/GE Fanuc IS215GFOIH1A IS215GFOIH1AB IS200GFOIH1A circuit board
|
Manufacturer: |
General Electric |
|
Part Number: |
IS215GFOIH1A IS215GFOIH1AB IS200GFOIH1A |
|
Series: |
MKVI
|
|
Full Description: |
General Electric IS215GFOIH1A IS215GFOIH1AB IS200GFOIH1A
circuit board
|
|
Status: |
In stock |
| Warranty | 12 Months |
The IS215GFOIH1AB is a printed circuit board component manufactured by GE for the Mark VI system.
This system is a management platform for gas and steam turbines, and can also be used to integrate
power island and balance of plant operations.

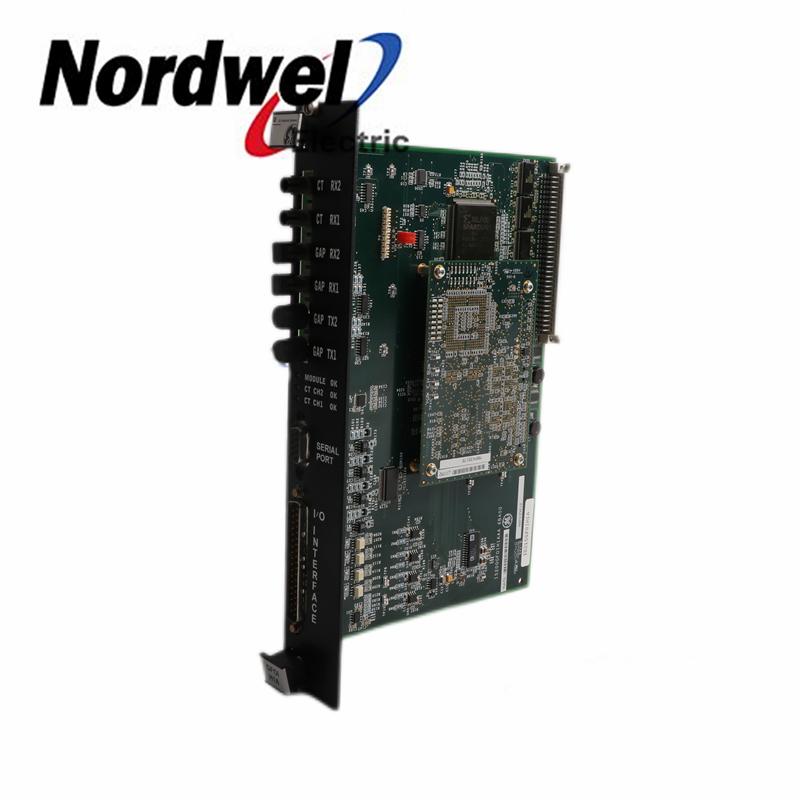

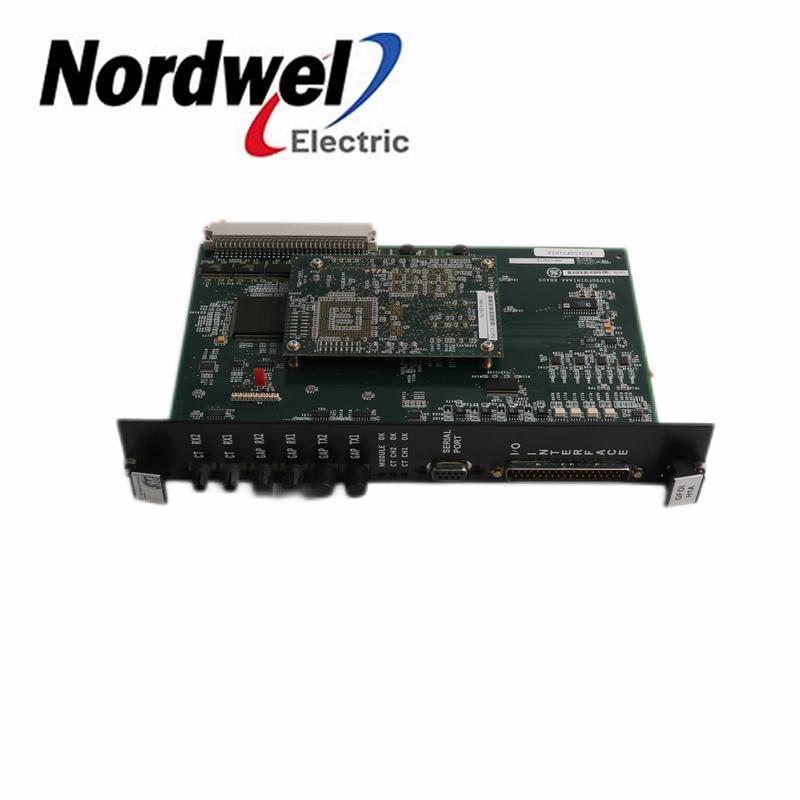

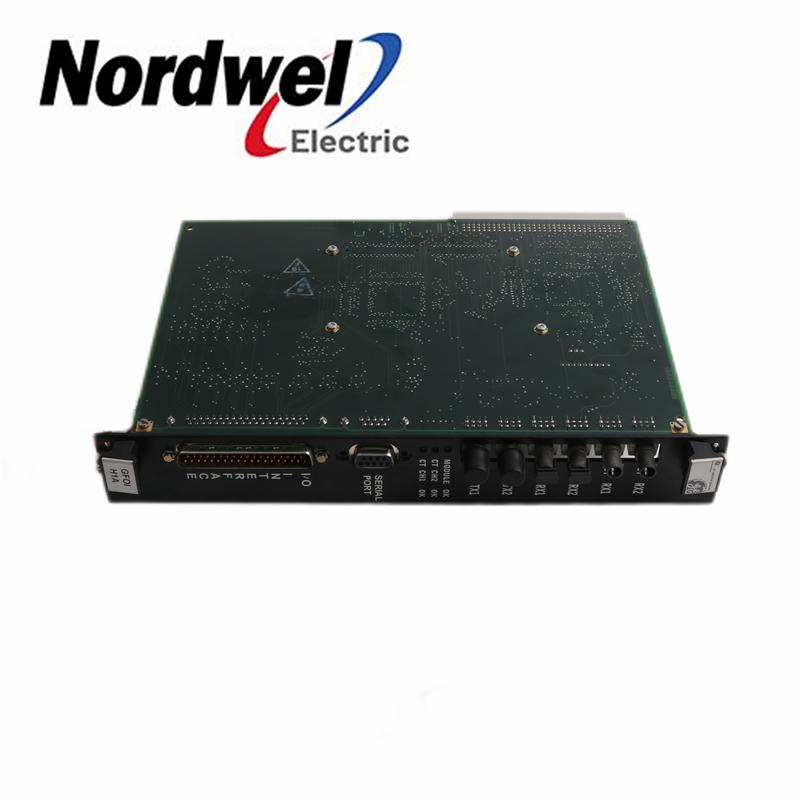

The board was designed with a front faceplate attached to the primary board using two screw connections
and features several components including a serial port, an I/O interface port, three LED components (Module
OK/Ct Ch2 OK/Ct Ch1 Ok,) two HFBR-0400 series transmitters and four HFBR-0400 series receivers. Each
of these components are directly compatible with industry standard connectors like ST, SC, SMA, and FC.
The board is populated with a jumper switch located in the lower left quadrant and is populated by ten test
points and a variety of integrated circuits that includes a Xilinx Spartan FPGA (field programmable gate array.)
Additionally, the board has four transistors, eight resistor network arrays, capacitors, resistors and several
board connectors, including a backplane connector.
