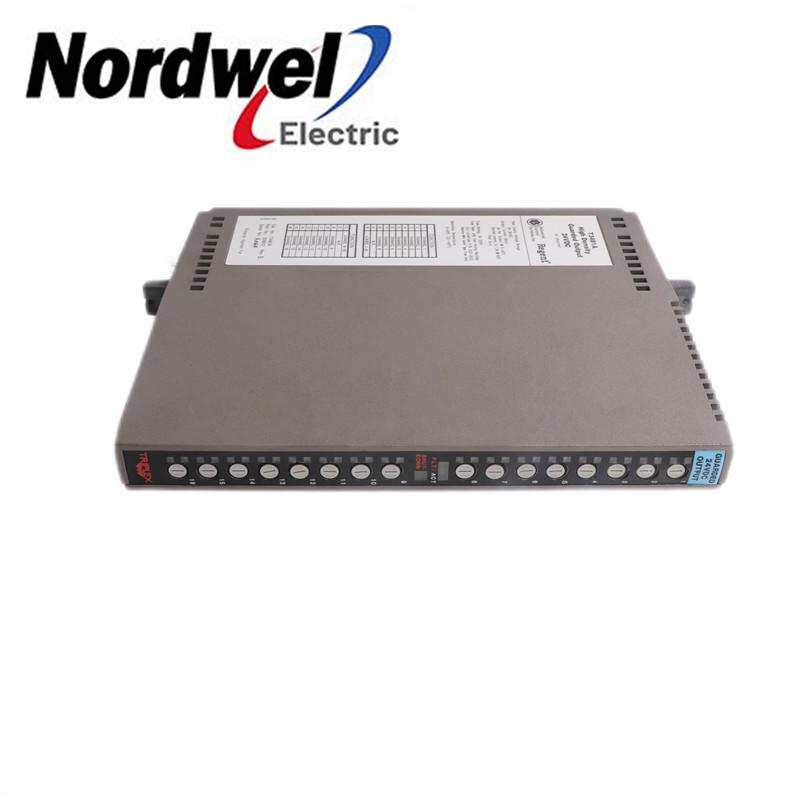

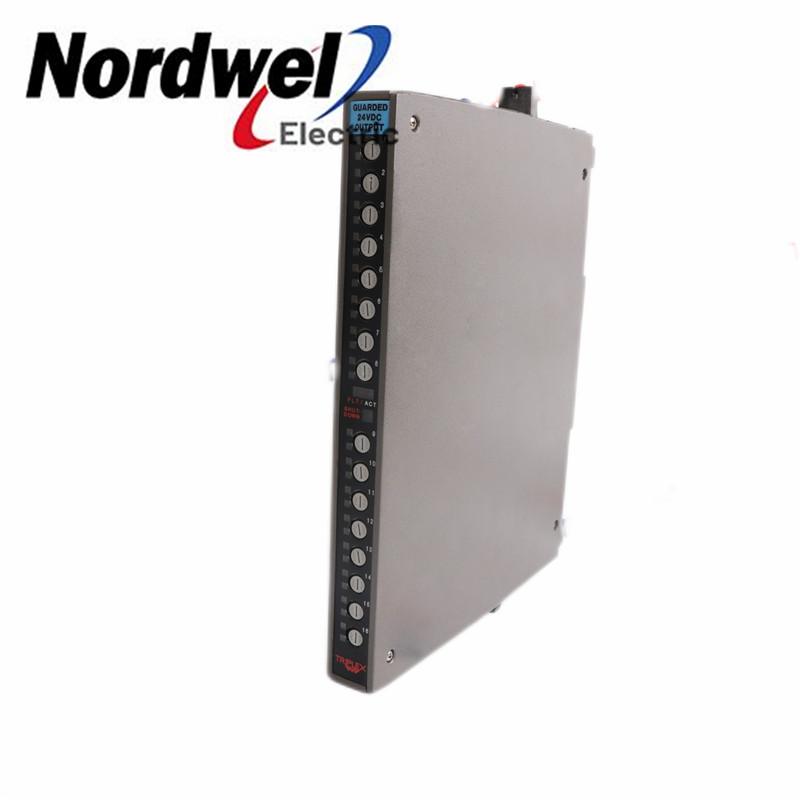

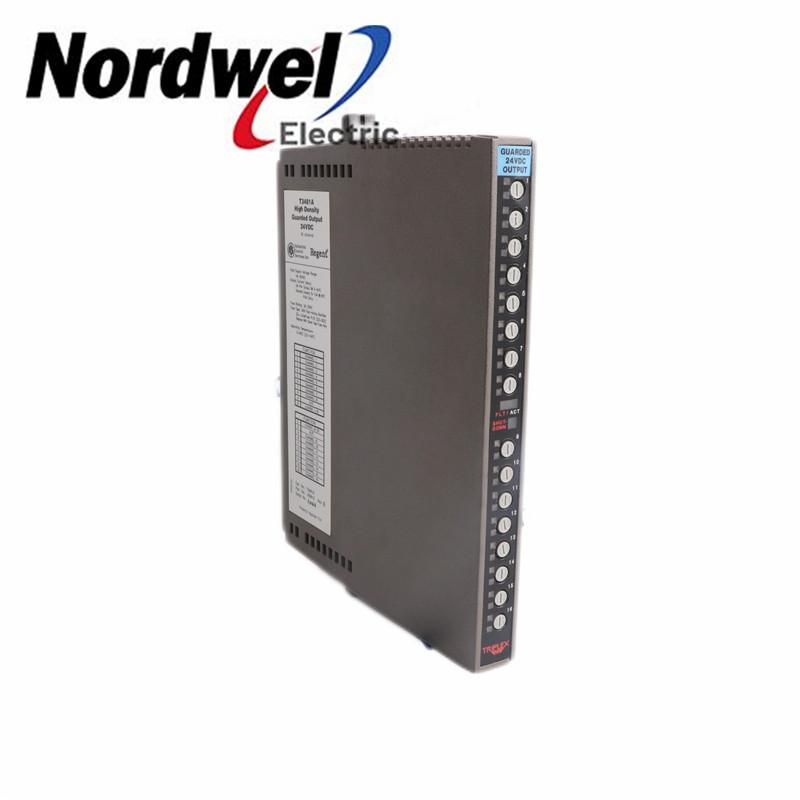

ICS TRIPLEX|T3481A| Monitored Guarded Output Module


  • Part Number:

    T3481A
  • Weight:

    1.82kg
  • Dimensions:

    3.2cmX26.5cmX35.8cm
  • Manufacture Year:

    2021
  • Place of Origin:

    USA
  • Certification:

    CO,CQ
  • Description:

    ICS TRIPLEX T3481A Monitored Guarded Output Module

Monitored Guarded output modules provide Guarded control

and line monitoring for sixteen field loads. Three types of

modules are available for interfacing to outputs powered from

24 VDC, 110 VAC, or 120 VDC field power supplies. These

modules are called Guarded because each module's dualredundant

design ensures that no single fault within the

module will inadvertently apply power to an output. These

modules also monitor the output field wiring for open and

short circuit faults. Individual output line status is available

to application programs.


Features

• Sixteen Guarded outputs (in two groups of eight).

• Fault tolerant operation when connected in parallel with another module of the same type.

• Hot-replaceable.

• Complete, automatic testing of all output circuits.

• Automatic line monitoring detects open and short field wiring circuits.

• Individual front panel indicators on each module show module fault/active

  status and shutdown state; additional indicators show output status and load/fuse fault for each point.

• Fuses accessible from front panel.

• 2500 minimum electrical isolation between field and logic circuits.

• TÜV certified, Risk Class 5.
